Bus routes in Klang Valley

This article lists bus routes in Klang Valley, Malaysia. Many bus stops are mapped but the route relation is missing.

Tagging

This is only a suggestion based on the Public transport tagging schema. Please also refer to PTv2 in Public_transport and Buses for detail.

Relation type=route_master

Key	Value
name	Indicate the termini which the bus operates. Example : "421: Taman Dagang (left direction or the top in kiosk website, where ID: XXX(1)) → Bukit Bintang" (Standard format through Telegram community discussion group, for a roundtrip, can use ↺ instead of the arrow) No need to include via to make the name short, only terminus are listed.
network	Rapid KL Bus (Other examples include MRT Feeder Bus / LRT Feeder Bus / PJ City Bus / Smart Selangor Bus)
operator	Rapid KL (also valid for MRT/LRT feeder bus / PJ City Bus / Nadi Putra and Smart Selangor routes under Rapid KL) / DBKL (GOKL City Bus) / Selangor Omnibus / Smart Selangor / MARA Liner
public_transport:version	2
ref	Line number. Example : "421".
route_master	bus
type	route_master

Relation type=route

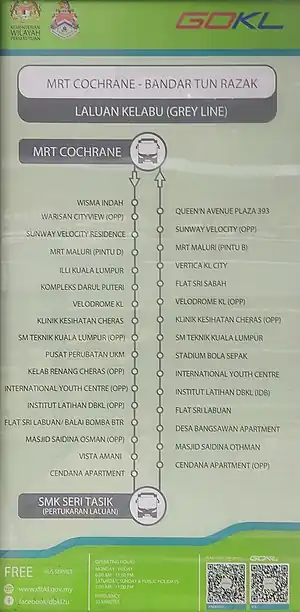

An example of bus route information board in Kuala Lumpur

Key	Value
name	Same as the master route, reverse terminal name of opposite direction
ref	Same as the master route
type	route
route	bus
network	Same as the master route
operator	Same as the master route
from	Name of first terminus
to	Name of the last terminus
via	Name of the passing place (very useful for roundtrip)
roundtrip	yes / no
public_transport:version	2
charge	RM1 (optional, but can add RM1 for MRT/LRT feeder bus route)
colour	#<color code of the Rapid KL corridor/GOKL, can be found at w:en:Template:KL bus color>
fee	yes / no (optional, but can add no for free bus route)
interval	optional, Frequency of the route, for more can refer interval
opening_hours	optional, MRT feeder bus normally using this slot "Mo-Su 06:00-23:30"
wheelchair	yes / no (optional, normally put yes for MRT Feeder Bus/GOKL bus)

These routes must be added to the related master route relation with an empty value for their role, so the master route will have route in 2 dircetions.
These routes must contain all the bus stops in the order they are serviced with role=platform (you can also use platform_entry_only for the first stop, platform_exit_only for the last stop), then all the ways that are part of the bus route
More detail is available in the service routes section.

Bus stops

Smart Selangor bus stop in Kajang

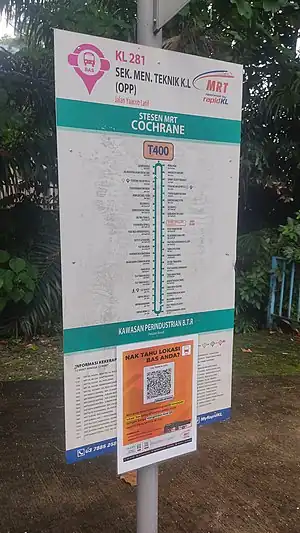

An example of bus stop information board in Kuala Lumpur

Key	Value
bus	yes
highway	bus_stop
name	Name of the stop. Usually can be found in Rapid KL kiosk website / information board at the bus stop (as the right picture) Example: "Stadium Bola Sepak Kuala Lumpur", please do not add the code inside, as well as the road located If there are two names, for Rapid KL, please choose the latest name for example, "Pasar Chow Kit" instead of "Batu Road" (Batu Road can put at the "old_name") If for different system (e.g. MRT feeder Bus and Rapid KL LRT bus), can display as "new name" / "old name" (e.g. MRT T815 / LRT T789) If for different name in Rapid KL and GO KL (or Smart Selangor), can display as "Rapid KL name" / "GOKL name" (e.g. EDC Hotel / Tiong Nam)
public_transport	platform
ref	bus stop code used to consult bus schedule at this stop Example: "KL250".
route_ref	bus route code that passes by at this stop Example: "T400;T402;GREY".
bench	yes / no (optional)
bin	yes / no (optional)
departures_board	timetable / realtime / no (optional) timetable if the bus stop is providing a timetable, normally in the terminal station, or some major bus stops e.g. in Hentian Universiti MAHSA and Dewan Tunku Canselor. If you can find a QR code from MRT Corp / Rapid KL, then select realtime, for some stop like LRT Universiti bus stop near to the Federal Highway, there do exist also the PIDS in a screen board
operator	Rapid KL;DBKL (optional)
passenger_information_display	yes / no (add this tag "passenger_information_display=yes" if the station is providing both timetable and QR code like this one)
shelter	yes / no (optional)
tactile_paving	yes / no (optional)
wheelchair	yes / no (optional)

Current state of bus network mapping

Listed by operators then route numbers. You can change sorting by clicking on the column headers. T101 (loop) and 421 (2 termini) can be your reference. The current route to be input can refer to w:ms:Senarai laluan bas di Lembah Klang

Ref	Name	Operator	Route master	Routes	Notes
107	107: Hab Lebuh Pudu → Bestari Jaya	Selangor Omnibus	0 0	North 0 0 South 2662848 2662848	Need checking. One way with gaps.
151	151: Bandar Baru Selayang → Hab Lebuh Pudu	Rapid KL	0 0	1 - 2 0 0 2 - 1 1827202 1827202	Need checking.
170	170: Hab Wira Damai ↺ Stesen LRT Sentul	Rapid KL	N/A for loop	Loop14965387 14965387	Is this loop? Is the charge RM1 flat rate?
173	173: Taman Jasa Utama → Lebuh Ampang	Rapid KL	0 0	1 - 2 0 0 2 - 1 1827205 1827205	Need checking.
302	302: Titiwangsa ↺ KLCC	Rapid KL	N/A for loop	Loop 3031365 3031365
400	400: Damai Perdana → Hab Lebuh Pudu	Rapid KL	0 0	1 - 2 1827216 1827216 2 - 1 0 0	Need checking.
402	402: Terminal Maluri → Titiwangsa	Rapid KL	0 0	1 - 2 1852559 1852559 2 - 1 0 0	Need checking.
421	421: Taman Dagang => Bukit Bintang	Rapid KL	11315062 11315062	East 1824556 1824556 West 11315061 11315061
450	450 :-> Kajang - KL	Rapid KL	11750018 11750018	North 11626365 11626365 South 11698700 11698700
580	580 / T584	Rapid KL	0 0	North 7843844 7843844 South 7843856 7843856	Need checking (old code as T584)
650	650: Hab Pasar Seni ↺ Taman Desa	Rapid KL	0 0	9130337 9130337	Need checking and update to PT2 (currently using stop instead of platform)
708	708: Bdr Damansara -> Klang	Rapid KL	11791912 11791912	East 11779671 11779671 West 11496226 11496226	wrong route, the bdr damansara should be Sunway Pyramid
751	751: Taman Sri Muda → Hab Pasar Seni	Rapid KL	0 0	2893317 2893317	Need checking
772	Subang - KL	Rapid KL	0 0	3178272 3178272	Need checking (old code as U81)
780	780: Kota Damansara - Pasar Seni	Rapid KL	12310846 12310846	East 11911773 11911773 West 12310845 12310845	One way completed. Westbound to be completed
B1	BRT Sunway Line	Rapid KL	0 0	11549145 11549145	One way route need checking, also around stations
T100	T100: Hospital Sungai Buloh ↺ MRT Sungai Buloh	Rapid KL	N/A for loop	Loop 14878286 14878286	MRT Feeder Bus
T101	T101: MRT Sungai Buloh ↺ Bukit Rahman Putra	Rapid KL	N/A for loop	Loop 11267780 11267780	MRT Feeder Bus. Surveyed on 14 April 2023.
T109	T109: MRT Sri Damansara Sentral ↺ Desa ParkCity	Rapid KL	N/A for loop	Loop 14307124 14307124	MRT Feeder Bus
T111	T111: MRT Sri Damansara Timur ↺ Taman Daya / Taman Kepong Indah	Rapid KL	N/A for loop	Loop 14306904 14306904	MRT Feeder Bus
T223	T223: LRT Setiawangsa ↺ AU3, Jentayu, Keramat	Rapid KL	N/A for loop	Loop 14758061 14758061	LRT Feeder Bus
T302	T302: Hutan Lipur Ampang => Ampang Point	Rapid KL	11260697 11260697	East 11257432 11257432 West 11260696 11260696
T305	T305: MRT Tmn Midah => Sri Nilam	Rapid KL	11380210 11380210	East 11380209 11380209 West 11380208 11380208
T352	Taman Shamelin - Maluri	Rapid KL	0 0	3459861 3459861	Need checking (old code as T327)
T400	T400: Bdr Tun Razak => LRT Maluri	Rapid KL	N/A for loop	Loop 11379238 11379238	Need checking
T401	T401: MRT Cochrane ↺ Bandar Sri Permaisuri	Rapid KL	N/A for loop	Loop 1852545 1852545	Need checking
T402	T402: LRT Salak Selatan => Bandar Sri Permaisuri	Rapid KL	N/A for loop	Loop 11348615 11348615	Need checking
T409	T409: MRT Taman Mutiara ↺ Taman Supreme / Ketumbar Hill	Rapid KL	N/A for loop	Loop 14741929 14741929	MRT Feeder Bus
T410	T410: MRT Taman Connaught ↺ LRT Bandar Tasik Selatan	Rapid KL	N/A for loop	Loop 13402062 13402062	Need checking
T450	Kajang - Beranang	Rapid KL	0 0	4866844 4866844	Need checking, no name and ref added
T456	Stesen MRT Sungai Jernih	Rapid KL	0 0	8289613 8289613	Need checking. Not rendering on OPNV Wrong code 788
T461	T461: MRT Kajang => Taman Kajang Utama	Rapid KL	N/A for loop	Loop 11290278 11290278
T462	T462: MRT Kajang => Seksyen 8 Bangi	Rapid KL	N/A for loop	Loop 11276050 11276050
T463	T463: MRT Kajang => Seksyen 4 Bangi	Rapid KL	N/A for loop	Loop 11290277 11290277
T464	T464: MRT Kajang => Teras Jernang	Rapid KL	N/A for loop	Loop 11290276 11290276
T640	T640: Stesen LRT Taman Jaya - Taman Sri Sentosa	Rapid KL	N/A for loop	Loop 13839670 13839670	Need checking
T772	T608 Bukit Subang	Rapid KL	0 0	3178001 3178001	Need checking (old code as T608)
T801	T801 :MRT Kwasa Sentral	Rapid KL	N/A for loop	11621140 11621140	Need checking
AJ2A	AJ2B: Sri Nilam => AEON => Hospital Ampang	Smart Selangor	11211669 11211669	Loop 11211669 11211669	Operator Smart Selangor not MPAJ.
AJ2B	AJ2B: Sri Nilam => AEON => Hospital Ampang	Smart Selangor	N/A for loop	Loop 11249169 11249169	Operator Smart Selangor not MPAJ.
KLG1	KLG1: Jalan Batu Tiga Lama - Taman Bayu Perdana	Smart Selangor	N/A for loop	Loop 12046127 12046127	Ways completed. Stops partial.
MPS3	MPS3: Batu Arang → Hospital Sungai Buloh	Rapid KL	15419282 15419282	1 - 2 2662847 2662847 2 - 1 0 0	Need checking.
KS02	KS02: Bandar Puncak Alam → MRT Sg Buloh	Selangor Omnibus	15009377 15009377	1 - 2 15009376 15009376 2 - 1 15321745 15321745	Need checking.
PJ02	PJ Free Bus	MBPJ	N/A for loop	4764513 4764513	Need checking, route not complete
SA07	Batu Tiga - Seksyen 20<s>T527 Subang Mas - Seksyen 15</s>	Rapid KL	0 0	31301 31301	Need checking (old code as T527)
PURPLE	GOKL Purple: Hab Pasar Seni ↺ Bukit Bintang	DBKL	N/A for loop	Loop 6476228 6476228	Need checking.
RED	GOKL Red: Hab Titiwangsa ↺ KL Sentral	DBKL	N/A for loop	Loop 6477886 6477886	Need checking.
BLUE	GOKL Blue: Hab Titiwangsa ↺ Bukit Bintang	DBKL	N/A for loop	Loop 6477887 6477887	Need checking.
GREEN	GOKL Green: KLCC ↺ Bukit Bintang	DBKL	N/A for loop	Loop 6479785 6479785	Need checking.
TURQUOISE	GOKL Turquoise: LRT Dato' Keramat ↺ Kelumpuk Bambu	DBKL	N/A for loop	Loop 14757592 14757592	Need checking.
GREEN	Hop-on Hop-off Bus - Garden Route (Green Line)	Elang Wah	0 0	11117854 11117854	Need checking. Ref "GREEN" overlaps with GOKL GREEN Line. Need changing.
	Airport Liner	Citybus	0 0	6698277 6698277	Need checking

Legends for Symbols & Colours

Symbol	Meaning
	Route status
	Stops status

Colour	Meaning	To do
	The map data is unknown	Please verify and/or complete
	The map contains no or little data	Please complete
	The map contains partial data	Please complete
	The map is largely complete (please describe missing data)	Please complete
	The map is complete (in the opinion of a mapper)	Please check and correct any errors
	The map is complete (verified by 2 mappers). Indicate Date when checked	Please update as needed
	The map data is present, but the route no longer exist.	Please remove the route data
