What are the main differences (except for the obvious, one is round one is square) between the round pin headers and the square ones?

Or differently asked: Why would someone choose round pin headers over the square ones (or the other way around)?

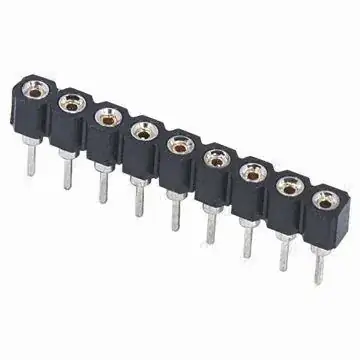

Round pin headers:

round pin headers

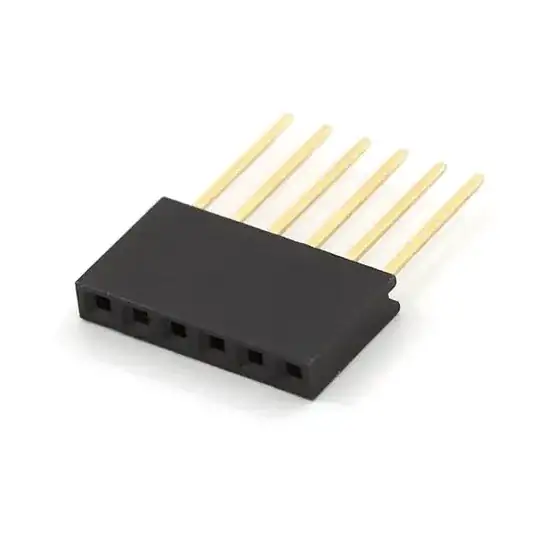

Square pin headers:

square pin headers

Veda
  • 363
  • 1
  • 4
  • 7
  • 1
    For perspective, I just got the round hole headers in thinking they were just a nicer header and found that I can't plug in what I expected to. – MZA Aug 15 '16 at 20:29
  • I was stuck with some round pin socket strips and they were completely useless to me....No way would normal male pins fit into these round pin sockets... So Maybe that was a safeguard against using them when they are not suitable! – Chris Nelson Jun 14 '22 at 12:24

1 Answers1

21

The round pin headers (also known as "machine pin headers") typically provide a more secure fit, with more contact surface area between the pins and sockets. They are often used in applications where vibration is a problem.

They're not used universally, because the machining process makes them significantly more expensive to manufacture than the square pins. Also note that the square pin typically won't fit into a round socket, and round pins going into square sockets can have problems maintaining position (or even contact).

Smart Manoj
  • 103
  • 4
Scott Winder
  • 1,165
  • 7
  • 10
  • 5
    Also, the round ones is often easier to solder on the same side as the ssockets instead of needing to use double a sided pcb – chwi Nov 26 '13 at 19:43
  • 8
    Expanding on the note that round pins have "more contact surface areas between the pins and sockets", you can use rounds pins in higher current applications than you can with square pins. – gbmhunter Jan 14 '15 at 23:51
