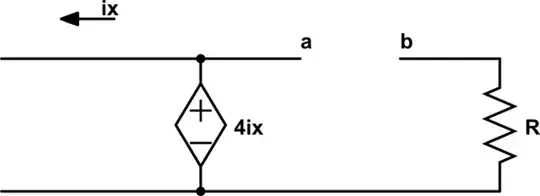

I'm working in a circuit with some switches and it has the same configuration but different elements between ab. I am not sure if is possible to get a Thévenin equivalent of the next strange subicircuit to simplify calculations:

schematic

simulate this circuit – Schematic created using CircuitLab

Chuz
  • 297
  • 2
  • 3
  • 14

1 Answers1

1

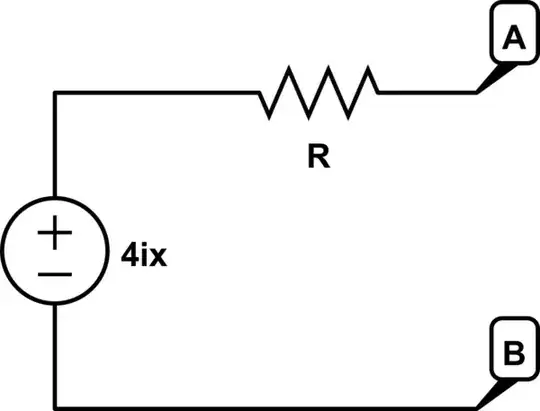

Since \$i_x \$ is not associated in any way with the output port AB, \$i_x\$ is an independent variable and thus, as seen from the port AB, the CCVS is an independent source. The Thevenin equivalent is:

schematic

simulate this circuit – Schematic created using CircuitLab

Alfred Centauri
  • 26,502
  • 1
  • 25
  • 63
