I made a scheme of 16-bit decoder in ISIS by AND's, XOR's etc. and now I want to use this scheme to make my own device. The block with ports. How to do this? I found videos, where people make block and its ports, but I have never seen how to use my own scheme to make my own device.

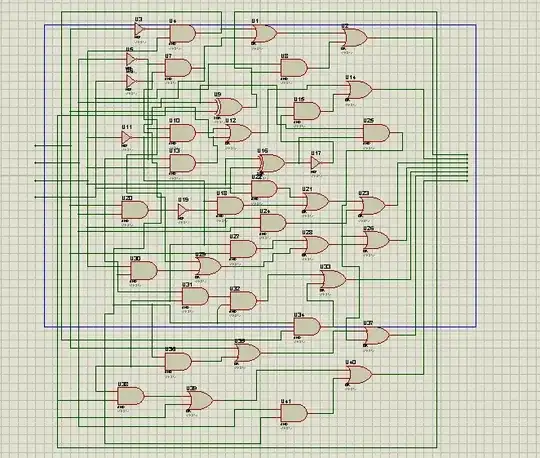

I've made this in ISIS: enter image description here It's working. And I need to take this circuit: enter image description here

And make a simple block of it. Something like this: enter image description here Something, that I can save to library and use it later.

user50222
  • 401
  • 2
  • 7
  • 23
  • I don't know what's the difference... I have working decoder, but I can see the structure of it. And I want to make one block with few ports and save it to library, so I can use this block in other schemes without seeing what's in it. – user50222 Jul 05 '13 at 10:33
  • 1
    I'm not native english speaker and I have never attended a subject about this. I'm just trying to learn something useful during holidays. So I'm sorry, that I can't express it properly. I probably don't even know how many posibilities here is, so I don't undertand, what's unclear about my question. What I want is very simple. I will try pictures. Just a second, please – user50222 Jul 05 '13 at 10:45
  • The video I watched was http://www.youtube.com/watch?v=8-cv1bCiuKM. – user50222 Jul 05 '13 at 11:01
  • No solution for this? I am searching for exactly the same answer. – Andres Oct 22 '13 at 00:22

1 Answers1

8

I have found one way.

Click the Subcircuit Mode icon here: enter image description here

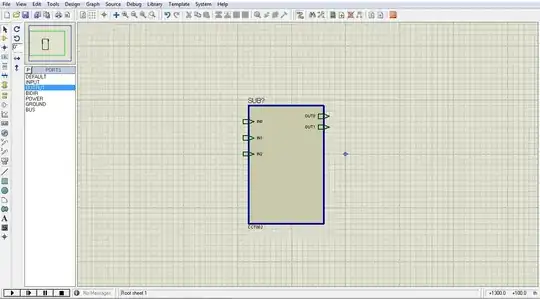

Then click on the screen, drag and create a box you want your device to look like. In the list you now have highlighted "DEFAULT". You choose "INPUT", click on your box, where you want ports to be. Than do the same with "OUTPUT". Give name to all ports by double clicking or using context menu and properties. You should get something like this: enter image description here

Then click on the box and choose "Goto Child Sheet". There you can create the circuit. There you need to use INPUT and OUTPUT from the Terminals Mode (the icon right under the Subcircuit Mode icon in the first picture) and name them exactly the same as ports in the previous file. Be careful. Do not put ports on the wire. You have to connect them by the wire as any other device.

enter image description here

You can continue with building circuit in the parent sheet. I didn't find a way how to get it in to library to use it in other projects, but you can always copy it (Parent and Child sheet. If you copy only the box of circuit, the Child sheet will be empty).

I hope this is clear enough. My English is poor.

AndrejaKo
  • 23,261
  • 25
  • 110
  • 186
user50222
  • 401
  • 2
  • 7
  • 23
  • If you think that your problem is completely solved by method you explained in this answer, accept it by clicking on green tick mark. – AndrejaKo Oct 22 '13 at 21:02
  • 1
    Yes I end up on this way but adding it to a library or a simpler method to copy it (sometimes when copying the child sheet it conflicts with the designators that are already in use) would be great. – Andres Oct 28 '13 at 13:44
  • I think the "add to library" part is very relevant... – Brethlosze Aug 01 '18 at 16:48
  • The other way is to made a Spice Block and use the "Library/Make Device" menu... – Brethlosze Feb 09 '19 at 18:30
