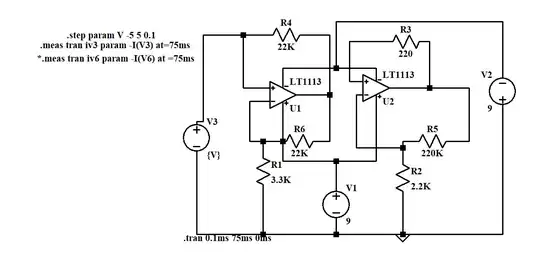

I want to simulate the Chua circuit in which a negative resistor is used. I want to simulate the V-I characteristics of Chua diode. But it does not get the same result as shown in book or papers. please help me to find out error in this circuit.enter image description here And also i am not get voltage across v3 option in add trace i only get option I(V3) enter image description here

sir, i did not get how can i plot V-I graph from this circuit. i want this curve shown in fig 3.enter image description here

Usha Kumari
  • 23
  • 4

1 Answers1

3

please help me to find out error in this circuit

The double red-boxed item is surely an error. The single red-boxed item is potentially an error: -

enter image description here

You also don't seem to have this connection on your schematic: -

enter image description here

In other words, the 2nd op-amp circuit on the right is not being driven by your signal V3. Maybe you copied the circuit from this erroneous question?

I am not get voltage across v3 option in add trace

That node is probably one listed as V(n001) to V(n010). If you explicitly label the node, it will appear in the add trace list I expect.

Andy aka
  • 434,556
  • 28
  • 351
  • 777
  • After correcting this i do not get the same result. And how can I get the V3 on the x-axis instead of I(V3). In Add trace option i am getting only this options, only I(V3) is given – Usha Kumari Aug 12 '23 at 13:16
  • I don't use LTspice so, now that the specific question has been answered, ask a new question about arranging the axes you speak about. I'm sure others will contribute rather than leaving your comment lingering hear where not so many will comment. Make sure you tag LTspice in your new question and make sure you put a comparison picture of what you do get that is different to the results of what you should get @UshaKumari – Andy aka Aug 12 '23 at 13:24
  • Try adding a node label to the node you want to display in the analysis. That node is probably one already listed in the table in your edited question. – Andy aka Aug 12 '23 at 13:55
