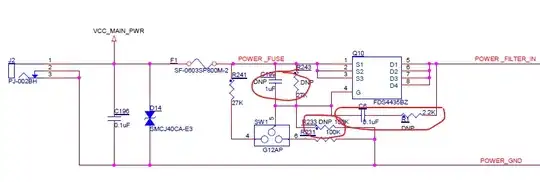

May I know what is the function of the below highlighted discrete components in the Switch circuit? enter image description here

Regards, Chitharanjan M

Chitharanjan
  • 129
  • 5
  • 2
    DNP means Do Not Populate, so these components are not fitted and hence don't do anything. – Finbarr Jul 26 '23 at 08:53
  • 1
    Does this answer your question? [Symbol identification (DNP & 0R)](https://electronics.stackexchange.com/questions/618327/symbol-identification-dnp-0r) – Finbarr Jul 26 '23 at 09:05
  • @Finbarr Yes in the Design its DNP, but what is the function of that discrete, why these are been used as optional (DNP) – Chitharanjan Jul 26 '23 at 09:51

1 Answers1

0

The combination of C199, R243 & R233 seems to be for the purpose of inrush current limit. R243-R233 combination also reduces the VGS of the PMOS when it is ON. See this for more explanation: https://www.powerctc.com/en/node/4564

C6-R1 combination appears to be a feedback from switch output to the gate. So, serves the purpose of ensuring that the output does not rise faster than a desired slew rate and hence also helps in reducing the inrush current.
