There's a bunch of topics around this but i haven't found something that fits my requirements. I'd imagine this is a fairly common thing though so any pointers would be appreciated

Basically i want to design a circuit that can use mains power anywhere (85-265v AC) and power a simple system with max power consumption of around 100mA.

Requirements:

  • 85-265v AC input
  • 3.3v +-5% DC output
  • 10-100mA current
  • Size as small as possible
  • ~10mV ripple
  • Cheap (less than ~$10)

This is for a networked device and will be totally enclosed (no buttons etc) so i don't think it has to be isolated although it of course wouldn't hurt.

I've looked at existing PCB mount PSUs but the price is a bit too high. Also they can be fairly big (mostly tall) and provide much more current than i really need. A simple solution with AC -> Transformer -> Diode bridge -> Voltage regulator would probably work but the transformer size becomes very big. Also i'm unclear how this will work with the universal voltage range. Basically i probably want something similar to the 3rd solution here: https://electronics.stackexchange.com/a/41944/6809

The components from Power Integrations seem to be what i should be looking at but i'm slightly unsure where to start. Also very few of the examples give 3.3v out and usually at a much higher wattage than i need (= i'm thinking i can make something smaller/cheaper as i only need .1 Amp)

Community
  • 1
Antti
  • 483
  • 3
  • 9
  • 16
  • 3
    I would seriously consider plugging in one of those tiny USB chargers for mobile phones, like the HTC chargers, and an LDO to bring the voltage down to 3.3 Volts, if this is a small run. For larger runs, the same logic applies as used in the miniature mobile phone chargers: Use a switching step-down design, perhaps with a piezoelectric transformer instead of an inductive, if size is paramount. See [my answer here](http://electronics.stackexchange.com/a/53628/14004) for an idea. – Anindo Ghosh Apr 26 '13 at 16:38
  • The idea is to do a bigger run so a usb charger won't work. Also size becomes an issue. What i'd like to replicate is how a mobile charger works though – Antti Apr 27 '13 at 09:46
  • Hmm... Then a switching regulator using piezo transformer (if you want isolation) can give you a tiny footprint. Else a capacitor voltage divider for step-down, then a full-bridge and reservoir capacitor, but that might actually end up being of comparable size. – Anindo Ghosh Apr 27 '13 at 09:54
  • Try adding a lm7833 ic to some power supply.... – Hey go get'em Jan 22 '18 at 09:01

2 Answers2

5

A device like the Power Integrations LinkSwitch-TN allows you to implement a simple buck converter that converts rectified mains voltage to a reasonably-well-regulated non-isolated low voltage with reasonably good efficiency.

If you need low ripple after the fact, you can put a linear regulator on the stepped-down output of the buck and minimize your resistive losses.

I've used these as primary-referenced control supplies and have had good success with them.

enter image description here

nekomatic
  • 1,490
  • 11
  • 15
Adam Lawrence
  • 32,921
  • 3
  • 58
  • 110
  • Monolithic Power (MPS) also has some very interesting chips for the same (https://www.monolithicpower.com/en/products/ac-dc-power-conversion.html) – BAO Jun 26 '19 at 13:55
0

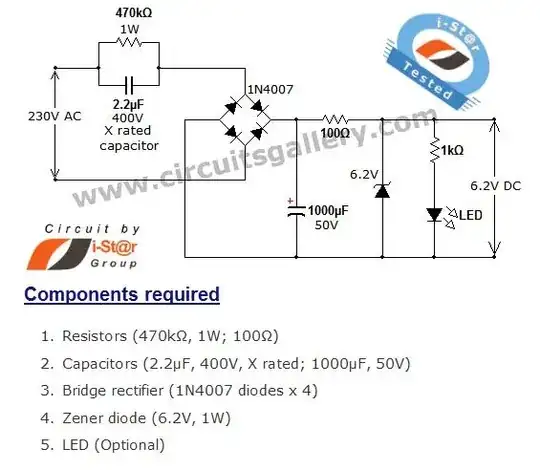

If it definitely doesn't need to be isolated from the AC I'd consider trying a capacitor dropper circuit feeding a zener diode. Here's one I found:

enter image description here

It came from this website. This circuit produces 6.2V but there is no reason why a 3.3V zener shouldn't be used to produce 3.3V output.

REMEMBER - THIS IS A NON-ISOLATED SUPPLY AND LIKELY WILL CONTAIN LETHAL VOLTAGES ON ALL POINTS OF THE CIRCUIT.

Andy aka
  • 434,556
  • 28
  • 351
  • 777
  • 1
    It could work, but there are some major issues. The main one is that if you design it to work across the entire Vin range then you can have a lot of power being dissipated by the resistor and zenier at max Vin. It could be several watts in the resistor, and a watt in the zenier. Also, the component values all need to be tweaked to work for 3.3v @ 100 mA. These issues makes this type of supply less attractive at 100+ mA. –  Apr 26 '13 at 18:28
