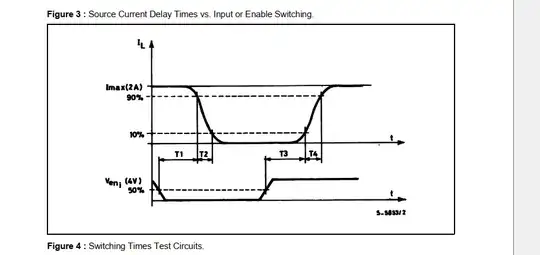

I am using L298n H-bridge driver and using Texas Instruments tiva c tm4c123gh6pm microcontroller. According to the datasheet (I am using source rise and fall delay because according to my understanding these delays are from microcontroller)

enter image description here

enter image description here

I am using deadband generator in tm4c123gh6pm and the register contains the description that enter the value in cycles. As you can see in the figure below its an 11-bit register and the maximum value i can enter in it is around 2^11 = 2k so i used chatgpt version 3 and it was not giving me a proper answer.

enter image description here

This last picture is the picture of my calculation for clock that i am using and the desired frequency for the PWM. I would be thankful if someone could help me out in this matter.

enter image description here

Ahsan
  • 59
  • 4
  • Advice: [Problems with L293, L298 and SN754410 H-bridge drivers on a low voltage supply](https://electronics.stackexchange.com/questions/108686/problems-with-l293-l298-and-sn754410-h-bridge-drivers-on-a-low-voltage-supply) – Andy aka May 17 '23 at 18:22
  • @Andy aka I checked the answer and they are discussing which one to use and the load these drivers can drive. I want to know how to calculate the deadtime in cycles from the above details. – Ahsan May 18 '23 at 09:44
