I am a beginner with Arduino. I am trying to upload any basic script from my PC to an ESP01 through an Arduino UNO and Arduino IDE.

The code I am trying to upload is very basic:

void setup() {


 // initialize LED_BUILTIN as an output pin.
  pinMode(LED_BUILTIN, OUTPUT);
}

void loop() {
  digitalWrite(LED_BUILTIN, HIGH);   // turn the LED on
  delay(1000);
  digitalWrite(LED_BUILTIN, LOW);    // turn the LED off
  delay(1000);
}

I have followed various tutorials and have wired the ESP01 as follows

ESP01 Arduino
Vcc 3V3
EN 3V3
GND GND
TX TX
RX (voltage divider to pull down to 3V3) RX
I00 GND
RST 3V3 (switch off) / GND (switch on)

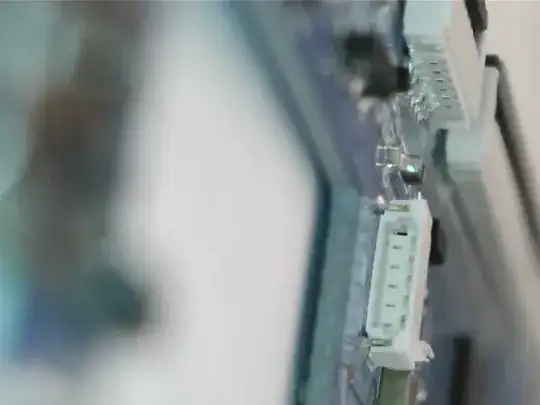

enter image description here

I press 'Upload' in Arduino IDE, then press the reset button once on the ESP-01. The RX LED on the Arduino flashes in sync with the blue LED on the ESP-01. Then an error comes up and the code is not uploaded. The error log reads:

    . Variables and constants in RAM (global, static), used 28104 / 80192 bytes (35%)
║   SEGMENT  BYTES    DESCRIPTION
╠══ DATA     1496     initialized variables
╠══ RODATA   920      constants
╚══ BSS      25688    zeroed variables
. Instruction RAM (IRAM_ATTR, ICACHE_RAM_ATTR), used 59667 / 65536 bytes (91%)
║   SEGMENT  BYTES    DESCRIPTION
╠══ ICACHE   32768    reserved space for flash instruction cache
╚══ IRAM     26899    code in IRAM
. Code in flash (default, ICACHE_FLASH_ATTR), used 232148 / 1048576 bytes (22%)
║   SEGMENT  BYTES    DESCRIPTION
╚══ IROM     232148   code in flash
esptool.py v3.0
Serial port COM7
Connecting......

A fatal esptool.py error occurred: Invalid (unsupported) command 0x8
Barth
  • 1
  • Why is there a resistor divider on RX? Isn't RX already at 3.3V? – sai Mar 27 '23 at 07:57
  • I read that RX outputs 5V and therefore it would be better to step it down, although ESP pins can tolerate 5V, based on further reading of this advice https://forum.arduino.cc/t/what-is-the-voltage-at-the-rx-pin-of-the-arduino-nano/586693 In my set-up, I get the same results with and without the voltage divider actually. – Barth Mar 27 '23 at 13:36
  • Sounds strange to me that RX is 5V when supply voltage is 3.3V. Anyway, we could ignore it for now as you confirmed that without the resistor divider also, it does not work. – sai Mar 27 '23 at 14:17
  • 1
    For starters, you should connect TX to RX and RX to TX. Anything one device transmits (TX) should be received by the other device (RX). – Paul Mar 28 '23 at 14:13
