What is the difference between these two input impedance equations?

Asked Mar 17 '23 at 05:20

Active Mar 17 '23 at 09:20

Viewed 45 times

I'm currently solving some university E&M homework problems and to solve input impedance, we were given this formula (from Fundamentals of Applied Electromagnetics 6th Ed):

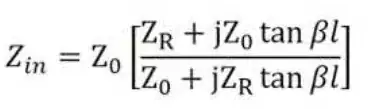

But when I browse online on the subject matter, the presented formulas are overwhelmingly as follows:

I'm totally stumped on the difference between these two, I read through both derivations and don't understand how they arrive to this conclusion. Any help will be greatly appreciated!

asked Mar 17 '23 at 05:20

jacob arnold cena

Have you checked the definitions of each term from each of the sources? – Solar Mike Mar 17 '23 at 05:33
Yes. They all correspond exactly the same which is even more confusing. – jacob arnold cena Mar 17 '23 at 05:42
1

They are the same equation if ZR = ZL * Z0. – Justme Mar 17 '23 at 06:09
