Can you help me identify what IC is this?
Context:
Asked
Active
Viewed 540 times
1
Velvel
- 3,591
- 3
- 12
- 30
muhammed hayr
- 67
- 4
-

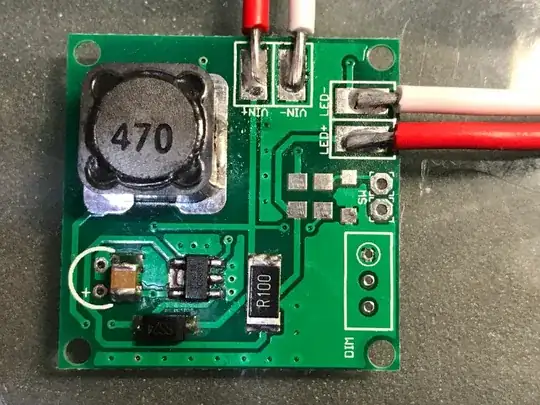

2Good photo. But please add info to your question body about the type of circuit and possibly surrounding components, and how those are connected. Seeing the choke makes me think in the direction of switching regulator, but I see no FET.. – tobalt Feb 20 '23 at 06:24
-
4Definitely a buck regulator, in one of the common SOT-23-6 pinouts: 1 = GND, 2 = SW, 3 = VIN, 4 = FB, 5 = EN, 6 = BS. May be a fairly powerful one (2-3A?) given the size of that inductor. I don't find any results offhand from the number, though. Have a sneaking suspicion "2230" is the date code (is this new hardware?), but neither showing much. Would have to flip through datasheets. – Tim Williams Feb 20 '23 at 06:29
-
