Are there different versions of 4060 counter IC available?

Question

I was searching for datasheet of 4060 IC (my part number is HEF4060BT, made by NXP) and found different versions with different stages. Is this just a vast typo in labeling pins in datasheets or some claimed 14-stage counter ICs are actually 13-stage as the pinouts suggest?

Some pics from different datasheets:

There *are* different versions of 4060, but they all have the same pinout and number of stages. The differences are in the power consumption and speed, mostly. — Hearth, Nov 22 '22 at 15:09

Andy aka · Accepted Answer · 2022-11-21T11:12:02.873

4

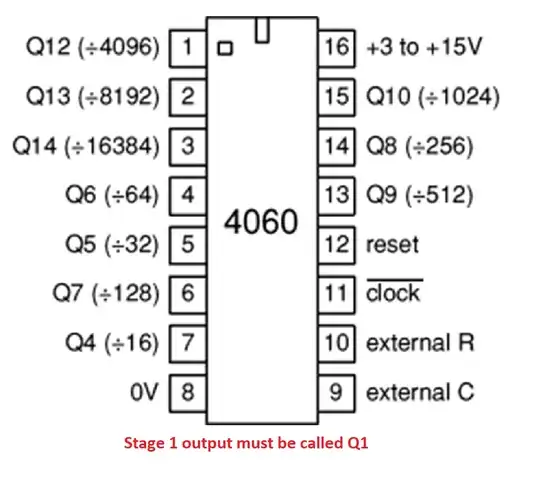

Do you start counting at 0 or at 1? That's the difference. They all use a 14 stage ripple counter and, the first-stage output is called Q0 by some folk and Q1 by others.

And, because this device also uses a 14-stage ripple counter: -

edited Nov 21 '22 at 11:12

answered Nov 21 '22 at 11:07

Andy aka

434,556
28
351
777

So any 4060 chip is able to divide by 16384 at its pin 3? – Bikay Nov 21 '22 at 11:08
Correct, they have a 14-stage divider @Bikay – Andy aka Nov 21 '22 at 11:15
