I am looking to use an SFP+ simplex BiDi transceiver in order to replace two 820 nm HFBR Avago modules, one Tx and one Rx. Being an SFP+ module, this seems to require a lot more circuitry to run than the Avagos, which are basically just LEDs.

Can I use the SFP+ transceiver in a similar way to the Avagos? Do I need to power the device, or can I just hook straight up to the transmit and receive pins and nothing else? Is there anything else I should know?

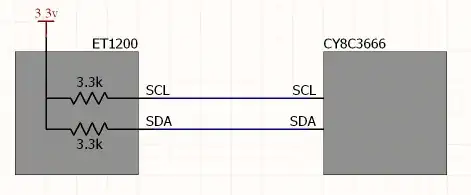

Recommended circuit

ocrdu
  • 8,705
  • 21
  • 30
  • 42
Chalupa
  • 21
  • 1

1 Answers1

1

Do I need to power the device

Yes. Pins 1, 10-11, 14-17, 20.

Is there anything else I should know? Thanks!

You also need to drive the control lines:

  • Tx_DISABLE (3) low,
  • Tx_FAULT (2) and EEPROM/DETECT (4,5,6) via 10k pull-up to VCC,
  • RX_RATE_SELECT (7) per SFP+ spec,
  • TX_RATE_SELECT (9) per SFP+ spec.
