I want to build a simple V-I tester and based on this article (or this) I did this easy circuit:

enter image description here

R1 = 560Ω
R2 = 100Ω
R3 = 1kΩ

where R1 and R2 is a voltage divider to set the \$V_{(DUT+V_{R_3})}=1VAC\$ and R3 limit the current in the Device Under Test.

I used this transformer, with 6.3V, 10 VA output (is dual, but I use only one output).

My question:

  1. If I change the voltage divider resistors to \$R_1=56Ω\$ and \$R_2= 10Ω\$ (especially), isn't better? With 10Ω I will reduce the output impedance of the circuit that feed the DUT, thus I don't load the source because it is in parallel to the \$R_3+R_{DUT}\ge1000Ω\$ and then \$R_3+R_{DUT}\gg R_1\$, isn't?
    BTW the current I draw is \$I =\frac{6.3}{66} \approx 100mA\$ and the output power is at the "safe" value of: \$6.3V\cdot100mA = 0.63VA\$
  2. With this voltage divider I have a voltage less than 1VAC across the DUT. The article says that I can test also Diode, Zener, etc. How is possible with this small voltage?
JYelton
  • 32,302
  • 33
  • 134
  • 249
Antonio
  • 1,626
  • 9
  • 15
  • Just to say that R3 "limit" the current through device, but is also the "measure" sensor of this current. Point 2: diodes need only 0.7V ... current is always "exp", and the scale doesn't matter. You can't determine the Zener point if the voltage is too low. – Antonio51 Apr 21 '22 at 17:15
  • Point 1: changing values is not really useful, because R3 limits the current. NB: adding a battery, one pot, and one resistor to control current, should also be used for testing and tracing curves of quasi any type of "transistor" ... – Antonio51 Apr 22 '22 at 07:09
  • @antonio51, Where you will put a battery? – Antonio Apr 22 '22 at 09:53
  • Transistors have 3 pins. - Collector (wired to X, a diode should be useful, voltage positive for NPN, negative for PNP ), - Emitter (wired to ground): C-E are used as DUT (gives Vce vs ~IC). Between Base and Emitter - a well-chosen resistor and a battery in the right position to set base current. – Antonio51 Apr 22 '22 at 11:02
  • @Antonio, What is the need for the voltage divider R1-R2? Why should you limit the voltage to 1 V? – Circuit fantasist Apr 22 '22 at 17:09
  • 2
    @Circuitfantasist - Divider R1- "R2 variable" only to limit the excursion of max voltage on DUT (some kind of current protection). For low current, it is enough and easy through R2. For high currents, a variable transformer (or a "fast" triangular voltage pulse with a low duty cycle) should be needed to adjust the voltage applied on DUT (as on a professional Curves-tracer), but with a scheme of "power" protection (so the calculation of v*i on the DUT is necessary to remain under Pmax) ... – Antonio51 Apr 22 '22 at 18:19
  • @Antonio51, I understand your considerations. In the early 90's, I created a computerized curve tracer for my students where the software monitored Pmax = V*I. The most [sophisticated experiment](https://photos.app.goo.gl/2vT87FTkeYMcHvQT6) was measuring and plotting a 3-dimensional BJT output characteristic on the screen. But now I use this extremely simple curve tracer in the laboratory (my students mount it on a small prototyping board). – Circuit fantasist Apr 22 '22 at 19:42
  • 1
    @Circuitfantasist It is a very good exercise in a lab and helps to understand some drawing functions (mathematical with scope) and electronic characteristics of DUT. This simple circuit is very useful. I used this simple curve tracer about 55 years ago with my "own scope made" ... and a professional tool Philips (https://www.radiomuseum.org/r/philips_transistor_curve_tracer_pm_6507.html) 5 years later at university. – Antonio51 Apr 22 '22 at 19:56
  • @Antonio51, since I can see that your avatar is a tunnel diode IV curve, maybe [this experiment](https://drive.google.com/file/d/1Xx35oA9aC4mfNdQAJsz3CryAqDAAynBC/view?usp=drivesdk) will be interesting for you:-) – Circuit fantasist Apr 22 '22 at 20:58
  • @Circuitfantasist Very good. Thank you. NB: if you change the resistor to the "right" "load" (high enough), you should see the "full" curve ... :-) – Antonio51 Apr 23 '22 at 06:24
  • @Antonio51, You probably mean "low resistance enough"? Exactly! I should buffer the 1 k voltage divider by an op-amp follower... and maybe, remove the resistance by a transimpedance amplifier... but then I was in a hurry and I didn't do it... I have considered these modes in [my Wikibooks story](https://en.wikibooks.org/wiki/Circuit_Idea/Negative_Differential_Resistance) about negative differential resistance. – Circuit fantasist Apr 23 '22 at 08:31
  • No. "High" resistance to "exceed" the negative resistance and make the whole circuit "stable" ... – Antonio51 Apr 23 '22 at 08:37
  • ... but I made it in this [computerized arrangement](https://drive.google.com/file/d/1XQxhwr-mtebAJ-GisCNAZLdOWWjbRy6Y/view?usp=drivesdk)... – Circuit fantasist Apr 23 '22 at 08:38
  • I mean we need low resistance in the case of an N-shaped NDR (tunnel diode) and high resistance in the case of an S-shaped NDR (neon lamp) to see the negative resistance region... – Circuit fantasist Apr 23 '22 at 08:41
  • 1
    Right. I forget that the axes for the "tunnel" curve are reversed! I used only the load line for the curves of UJT (V vs i) ... :-( – Antonio51 Apr 23 '22 at 08:46

1 Answers1

2

Here is what you can do, with a little effort ...

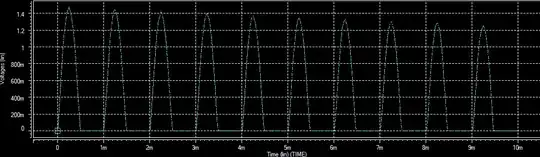

This is for BJT-type NPN. Here, R4 is stepped 100 k -> 1000 k.
See the "visual" change of "beta" ...

enter image description here

@Circuit fantasist ... and all those interested :-) ...
Here is a simulation to explain the choice of "voltage" and "resistor" to see the full curve of a DUT with "negative" resistance (NB: Voltage vs current, as with UJT device) ...
NB: the part of the "unstable zone" can't be seen if the 2 conditions (voltage, resistance) of "loading" are not met.

enter image description here
