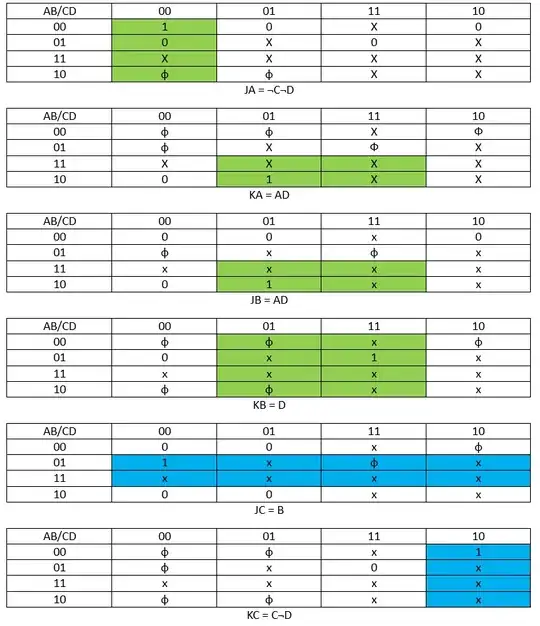

I have the following Karnaugh map's for JK flip flops. I've attempted to minimize them myself, however whenever I go to implement them I run in to an error. Anyone able to see if I've made an error in my minimization.

enter image description here

enter image description here

(originally uploaded to jsfiddle)

Hope you can help, hope this is the correct place to post!

Nick Alexeev
  • 37,739
  • 17
  • 97
  • 230
Kyle93
  • 289
  • 2
  • 9
  • 3
    What is the \$\Phi\$-symbol? Same for `x` – jippie Mar 06 '13 at 18:39
  • 1
    @jippie X is typically a don't care state but i've never seen the Phi symbol before. – Dean Mar 06 '13 at 19:31
  • @Dean that's why I started to doubt X too. – jippie Mar 06 '13 at 19:32
  • They are different forms of "Don't care" the zero with 1 on it is "don't care" from the excitation table where as "x" is simply don't care in the map itself. Meaning they can be either 0 or 1. It does not matter, you can use them to make minimization easier. I'm unsure if it's just a computing concept, as I do Computer Science not electronics. However, I hope that helps you understand and you can help! – Kyle93 Mar 06 '13 at 19:32
  • @Dean As I said for Jippie, its another form of don't care. For all purposes treat them the same – Kyle93 Mar 06 '13 at 19:33
  • Your first table has 1 0 X X, which you have grouped together. It has a zero and can't be grouped. So for the first table I make it JA = ¬B¬C¬D. Is this intentional or is this your problem? – Dean Mar 06 '13 at 19:40
  • @Dean Thanks! That was my issue, can't believe I over looked that! Thanks, feel free to answer the question with that reply in an answer format and I'll pick as best answer. Thanks again :) – Kyle93 Mar 06 '13 at 19:47

1 Answers1

3

Assuming that \$\Phi\$ is the same as X (don't care), I would make the following corrections:

JA = ¬B ¬C ¬D
Here you covered a 0 that you shouldn't, so you have to make a smaller minterm.

KA = D
Here you can make a bigger minterm because the 2*2 are above the minterm only contains don't cares.

KC = ¬D
Again, you can meg a bigger minterm. You don't have to add C because the first column only contains don't cares and ¬D covers the first and the last column.

totymedli
  • 146
  • 1
  • 9
  • Thanks, I just implemented the minimized solutions you posted they work perfectly. For them do I need to change my groupings at all or are they fine? I said I would give best answer to Dean as he was the first one to post a working solution. However when I can upvote I will upvote you as you posted the answer plus some helpful minimization and explanations! Thanks – Kyle93 Mar 06 '13 at 19:54
  • @Kyle93 I think that the other solutions are minimal realizations so they will be fine. Also I answered your question (find the solution) before Dean, it just took me a while to review all the solutions and write a proper answer, thats why my answer has a 7 min delay. But nevermind, do what you think is good. – totymedli Mar 06 '13 at 20:08
  • well unless dean replies your answer has it. So I will give him a bit to reply then select you. I'm only basing the time on what I can see. It says you answered 24 mins ago while he commented 30 mins ago, thus me believing he had the solution. Regardless, thank you very much for your help! – Kyle93 Mar 06 '13 at 20:11
