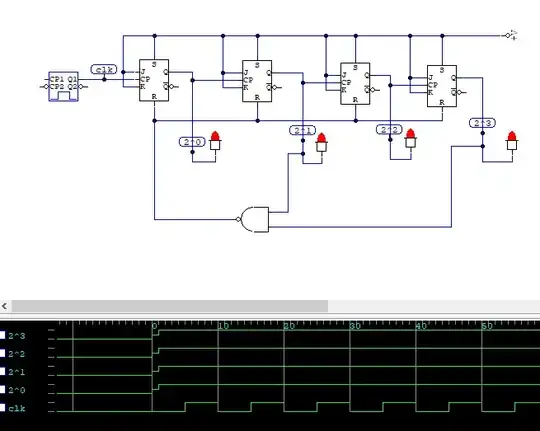

Trying to make a mod-10 counter with JK flip-flops in CircuitMaker but my outputs are always coming out HIGH instead of counting, not sure whats wrong enter image description here

Patrick Aliberti
  • 1
  • 4
    Are the set and reset inputs active high or active low? –  Nov 14 '21 at 16:43
  • 1
    The reset state of each flop is indeterministic. You need to incorporate an external reset for deterministic start-up. – Mitu Raj Nov 14 '21 at 18:16
