For a project, I need to control a normally closed solenoid valve and be able to apply a current on the valve only for a set amount of time before closing it again, and only once (so no cycle).

I think I could use a time relay to do so, but it seems there are many different functions and types of relays, and I'm a bit lost between Off Delay, On delay, Single-shot, and whether it is even the right way to do what I want.

Thanks.

enter image description here

ocrdu
  • 8,705
  • 21
  • 30
  • 42
Dan B.
  • 13
  • 2

1 Answers1

0

You have referred to a multi-function timer in which one of ten functions may be selected.

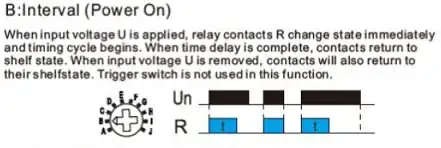

The function that meets your requirement would be B Interval (Power on).

enter image description here

The supply voltage is to be applied to A1 and A2. The solenoid valve is to be switched by the 'NO' contact (terminal #18 & terminal #15).

enter image description here
