Nmos-bjt darlington pair dc bias. [Homework Help]

Question

I have a homework assignment I need some help with.

I wanted to know if someone could tell me if I'm doing the dc bias calculations correctly, if not, could someone nudge me in the right direction.
I'm not talking about the ac analysis, only dc.

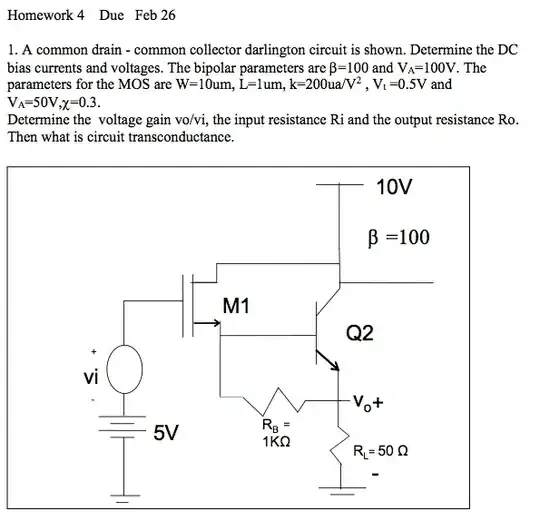

Here is the question

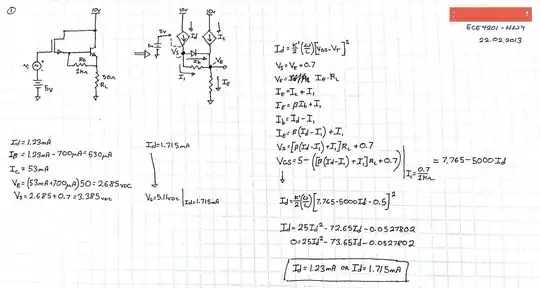

Here is my attempt
attempt

+1 for the efforts even though it is HW. – Chetan Bhargava Feb 23 '13 at 06:32 — Chetan Bhargava, Feb 23 '13 at 06:32

score 3 · Accepted Answer · answered Mar 24 '13 at 00:44

Your calculation mostly seems to be correct. The quadratic equation has the term "25000*Id^2" instead of "25*Id^2", but it is a typo since you have calculated reasonable Id values. Vs for Id = 1.23mA is fine. Vs for Id = 1.715mA would be 3.2V, not 5.1V.
