Is this pin first pin of Quectel L76 ? enter image description here

enter image description here

Im confused with this :

enter image description here

yeganehhp
  • 377
  • 2
  • 9
  • 1
    It appears as though pin 1 is lower right if you are looking at the device top down; the triangle marking (pin 1) therefore appears at top right if you flip it over and look at the other side. – vir Sep 09 '21 at 16:53
  • 1
    @vir sorry .. i dont understand your point – yeganehhp Sep 09 '21 at 17:06
  • 3
    I think that you are confused between bottom-view and top-view. – Dwayne Reid Sep 09 '21 at 17:49

1 Answers1

5

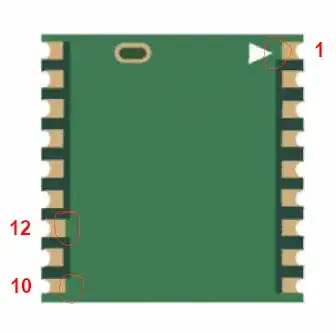

Look at the ground plane on the underside of the module. It connects to pins 1, 10, and 12 - Ground.

enter image description here

The "L76 Series (Top View)" image in the question, for some reason, is rotated 180°.

This is fairly common... I think to keep us sharp.
