Output of oscillator expected to be square wave, but looks sinusoidal

Question

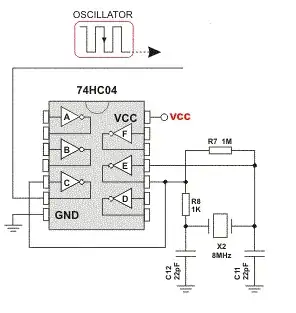

I've build a circuit exactly like the one below except Im using a SN74HC14N (schmitt triggered inverter).

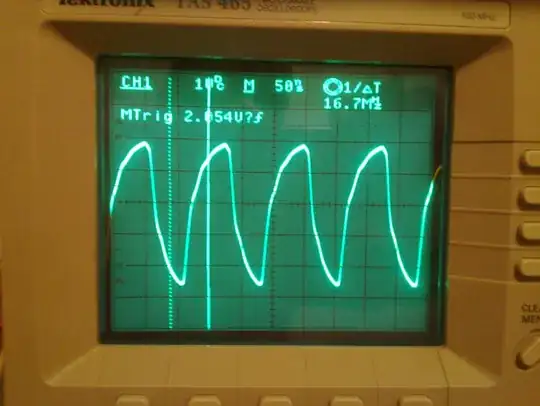

The output of the circuit looks like this, however isnt it supposed to be more square wave looking? I've tried feeding the output to another schmitt triggered not gate but the output stays the same. Anyway to get a more square wave looking output?

Also when I used non schmitt triggered not gates there was no output at all. All the gates im using are TTL. The crystal is 8mhz, and my oscilloscope goes up to 100mhz

There is a similar question. However, my oscillator is based on a pierce circuit

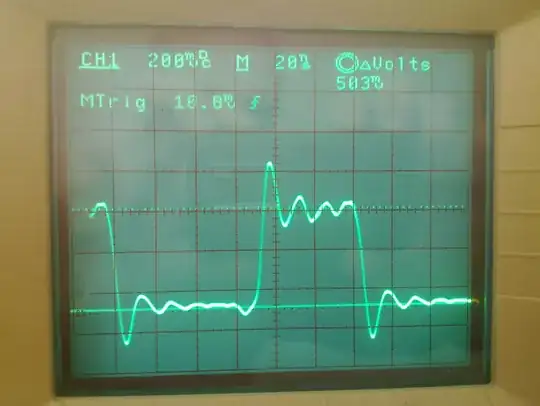

Edit: Here is what I get when I set the probe to 10x, I guess this is acceptable? even if it spikes? 10x reading

A photograph of the physical circuit could help us give you a good answer. Also, what's your Vcc? — The Photon, Feb 17 '13 at 00:53
Especially, what's your VCC? I'm seeing rise and fall times of 38ns @ 2V according to a databook. But also : is this measured using a correctly compensated x10 scope probe? — , Feb 17 '13 at 01:10
Your title is confusing. Are you expecting a "sin-wave" (sinusoidal) output or a square wave output? — The Photon, Feb 17 '13 at 17:53

score 3 · Answer 1 · edited Mar 19 '13 at 22:23

3

When switching to a 10X probe I am now seeing a high quality signal. The probe was the issue the entire time.

This issue is resolved.

edited Mar 19 '13 at 22:23

Kortuk

13,362
8
60
85

answered Feb 17 '13 at 19:37

RMDS

69
2
8

1

I suspect the ringing on your waveform is due to the ground connection. Are you using a normal probe ground lead which can be 6 inches or more? If so, reduce it to less than an inch and the ringing should decrease considerably. – Barry Feb 17 '13 at 22:07
You should make this a comment or an edit on the original question. The answer section is for answers to your question. You are allowed and encouraged to provide an answer to your own question, but this is not it. – Pablo Maurin Mar 19 '13 at 20:14
1

@PabloMaurin - by all appearances, the poster probably considered this the resolution of the issue - ie, an answer. Likely there's more going on - compensation and/or transmission lines, but they may not care or need to. – Chris Stratton Mar 19 '13 at 20:36
I have edited your answer assuming you mean this to be an answer(it read the same to me as @chrisstratton). can you please clarify your circuit and setup, maybe pictures of your setup, someone might be able to correct your entire issue. – Kortuk Mar 19 '13 at 22:24
I had this same problem. Reducing the ground loop made a significant change. – Matthew Hooker Sep 18 '20 at 21:07
