Does somebody know what the parts "D1" (top left) and "D2" (bottom left) are? I would expect them to be a special kind of diode, but I have never seen this symbol before in 10+ years of electronics.enter image description here

Marc
  • 262
  • 1
  • 11

2 Answers2

34

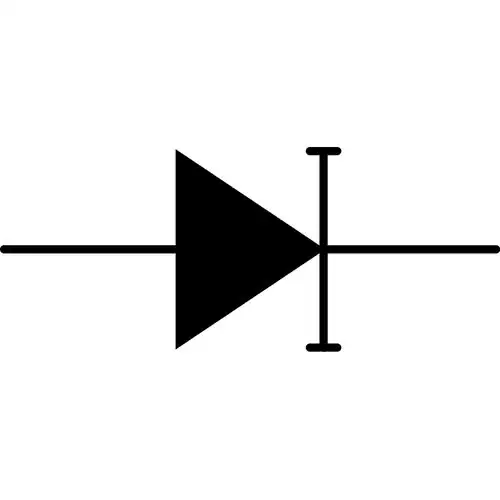

They look suspiciously like constant current diodes. These are devices usually made like JFETs but internally they have gate connected to source and produce a half-decent constant current. Here's the symbol: -

enter image description here

Picture from iconfinder. Sometimes this symbol is used: -

enter image description here

And Wikipedia has a nice article about them showing their relationship with a JFET: -

enter image description here

Andy aka
  • 434,556
  • 28
  • 351
  • 777
0

Since there's no other path for current to flow, it seems obvious that these diodes are being used to linerize the charging rate of the two capacitors. Which, of course, would otherwise be non-linear.

Carroll Price
  • 11
  • 1
    That's unlikely. They regulate the Zener current. Why should the charging rate of the capacitor matter in the reference voltage section? – Marc Nov 07 '20 at 00:27
