MP2617H(PMIC) is not working

Asked Nov 04 '20 at 08:11

Active Nov 05 '20 at 06:27

Viewed 144 times

I am designing a PCB board for our vehicle tracking device. Here the device will track GPS location and send it to the user. This is a battery operated device. Our power station provides us 12v input voltage and by using this we want to charge our device and operate as well in the same time. I am using here MP2617H (MP2617HGL-P) PMIC battery charger with power path management for single-cell Li-ion. When I give 12V input to our circuit, I expect to get 4.2v at Vsys PIN and battery should be charged too at the same time but I get 0V at Vsys Pin and same as on battery connection point.

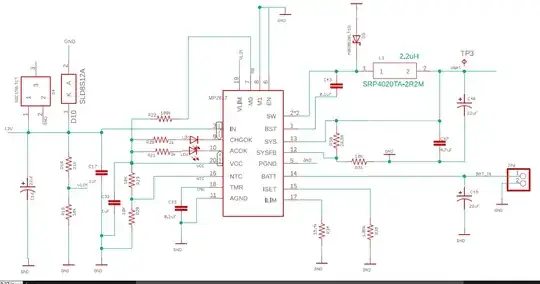

Here I am attaching a schematic and layout file of that. Please help me into find out exact problem.

edited Nov 05 '20 at 06:27

asked Nov 04 '20 at 08:11

Aarav Soni

Can you post a schematic with a higher resolution? Most labels are unreadable. – Codo Nov 04 '20 at 08:12
Updated, please check. – Aarav Soni Nov 04 '20 at 09:49
Please draw ground pointing down in the future. Do you have a battery connected? Is the circuit trying to do something but senses no battery/something else and stops? – winny Nov 05 '20 at 12:51
