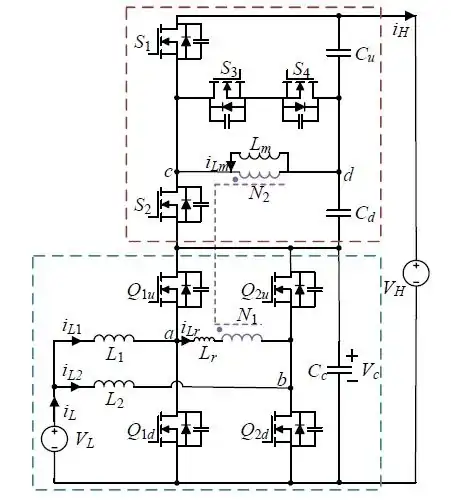

I have a 40V to 400V 500W bidirectional DC-DC converter as shown the image below.

I have trouble designing the gate drive circuit of the switches at the top of the circuit ( I mean S1 to S4 ) because all four switches are high side switches and I do not know what is the best way to drive them.

Is it possible to drive the four switches mentioned earlier without using a separate isolated source as well as a pulse transformer?

Also, all the switches in this circuit are IRFP4768PbF (TO-247 package). I have IR2xxx and TC44xx family ICs available for this. If possible, please provide your suggested ways based on these ICs.

edited Sep 29 '20 at 11:30

JRE

67,678
8
104
179

asked Sep 29 '20 at 11:26

Amir

You're looking for a high side MOSFET driver. They're all over the place. Simple IC that usually only requires a cap and diode for external components. – user187594 Sep 29 '20 at 11:53
You can find many eval boards, for example: https://www.ti.com/tool/TIDA-01160 – Marko Buršič Sep 29 '20 at 12:04
