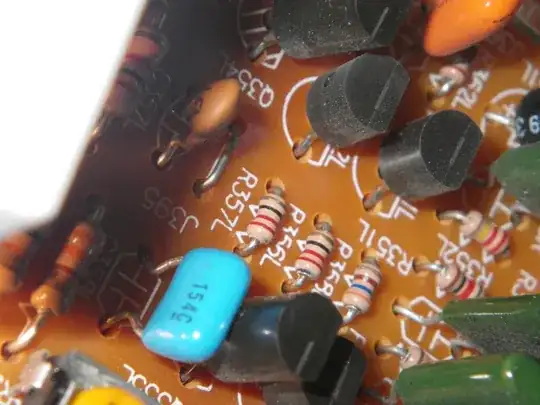

This is in the right hand power amp in a Nakamichi AV-10 receiver. Whilst watching the Olympics opening ceremony at considerable volume, the unit overheated (hot pcb smell) and cut out.

Having cooled it now works up to a point.

The main problem is that now cuts out at moderate volume. Using an Infrared Thermometer I have identified this capacitor running at 63C. It's mate on the other amp is at 30C. Cooling it with a fan allows the amp to operate at higher volume.

The other slight problem is that there is a faint crackle on the right speaker.

So, my question.

Do you think that the capacitor is the problem, or is it merely the indicator of a different failure?

markrages
  • 19,905
  • 7
  • 59
  • 96
John
  • 37
  • 2
  • The link is not readable. – Dave Tweed Dec 13 '12 at 15:34
  • 2
    I'm not going to create a Google Account just to follow this link! –  Dec 13 '12 at 15:44
  • 2
    It's not readable even if you have a google account. – pjc50 Dec 13 '12 at 15:57
  • 1
    I get error 403 even *with* Google account. – Turbo J Dec 13 '12 at 16:25
  • Well I'm definitely not going to get a Google account just for a 403! :-) We're all working on the assumption that it's a big fat electrolytic here ... but what if it isn't? In any case, 0.15pf sounds a rather unlikely value... –  Dec 13 '12 at 16:32
  • Where in the picture is the part you are talking about? The center of the pictures shows only a few resistors and bare board. In any case, the obvious answer is to replace it and see what happens. This is a el-cheapo single sided punched phenolic board, so replace the part shoul be easy, even if it is thru hole. – Olin Lathrop Dec 13 '12 at 20:18
  • I doubt that it's the capacitor that's overheating considering that it's not an electrolytic one. Have you checked any neighboring devices? It is possible that the capacitor is just radiating the heat from a nearby source (conducted to it through direct contact or the PCB trace). – shimofuri Dec 14 '12 at 10:48
  • That faint crackle is not insignificant. It may be related to this problem, or it may develop into your next problem. I have found noisy resistors, and noisy transistors as well. By all means change the cap, and see how things work after that. – gbarry Dec 14 '12 at 19:43
  • Closed until you can update @john. – Kortuk Dec 16 '12 at 03:41

2 Answers2

7

This question gives some of the background here. The capacitor may or may not have developed excessive leakage but its electrolyte is drying out - its ESR (equivalent series resistance) is increasing, so any ripple voltage dissipates more power in it, heating it up and drying it out faster. If you can measure its capacitance, you'll probably find it's lost most of that too... It's not totally unexpected, they are rated for a few thousand hours at a certain temperature - say, 85C.

Dave is right - replace it, paying attention to its value, voltage, and ripple current rating. And expect to replace its twin in a couple of months... better to do both at once.

********* EDIT *******

Now that the photo is visible, the above is wrong! (do I have to downvote it? )

This is not an electrolytic capacitor but some plastic film type, at a lower value (0.15 uF), and without the electrolytic's problems! The most likely reason for its temperature is that it is resting against a (probably rather hot) driver transistor. Is its mate on the other channel clear of the transistor? It should be safe to (gently) straighten it, but I think you have to look elsewhere for the real problem. The equivalent of these capacitors would be suspect in a 1940s valve amp, but not in a modern amp...

Check temperature of the output transistors first (one suspect is the bias current, if there is an adjustment for it) and check the power supply voltages if you can. Oh, and if you can measure capacitance, check the big electrolytics :-)
