I have just bought the following 5-pin switches of eBay: here
Problem is that no spec came with it and I am now wondered if I can directly wire the LED pins to the main or if I need to add extra electronics.
Asked
Active
Viewed 938 times
0
-
Why don't you ask the seller? If there is no info how to use it, why did you buy it? – Justme Jul 09 '20 at 15:07
-
Does this answer your question? [Wiring a 5 Pin LED Switch](https://electronics.stackexchange.com/questions/242193/wiring-a-5-pin-led-switch) – Michel Keijzers Jul 09 '20 at 15:11
-
@MichelKeijzers, not really, I did read this thread before posting my thread, thanks :-) – toughQuestions Jul 09 '20 at 15:15
-
1Ok, I retracted my closing/duplicate vote. Better ask the seller as said above. – Michel Keijzers Jul 09 '20 at 15:21
-
1@MichelKeijzers, yes that is the first thing I did, but I have not received any answer yet :-) – toughQuestions Jul 09 '20 at 15:24
-
You can try to find a similar google circuit, and test conductivity between pins with a multimeter. – Michel Keijzers Jul 09 '20 at 15:41
-
[What to check for when buying an electronic component or module](https://electronics.stackexchange.com/questions/504044/what-to-check-for-when-buying-an-electronic-component-or-module). – Andy aka Jul 09 '20 at 16:04
-
Ebay says: **LED Voltage: Please choose the right Voltage in option** - so what option did you choose when you placed the order? – Andy aka Jul 09 '20 at 16:25
2 Answers
0
The LED voltage is part of the ordering options, so if you selected 220VAC, and they got the order right, that should be the correct voltage.
Spehro Pefhany
- 376,485
- 21
- 320
- 842
-
Ok, great, so I should be fine then. It would be a shame to blow it up :-) – toughQuestions Jul 09 '20 at 15:14
-
1
-
2Ok, I wired the 2 LED pins directly to the main and it did not blow up, yeah! :-) – toughQuestions Jul 09 '20 at 16:43
0

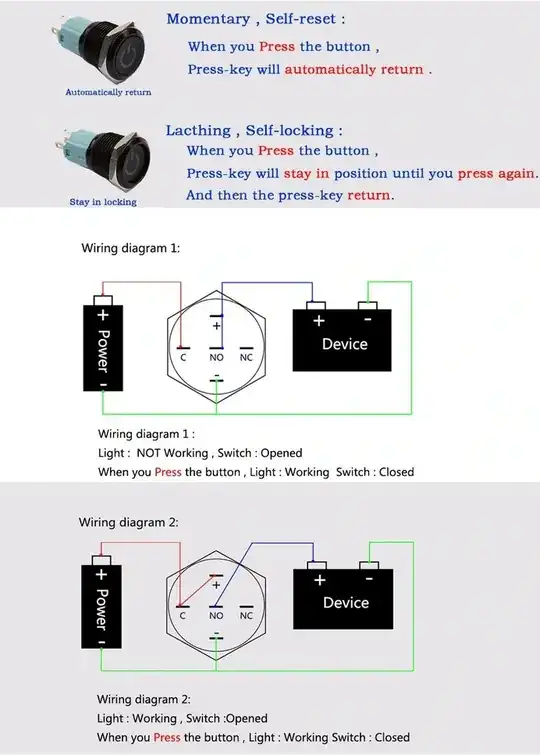

The seller provided the wiring diagram. I am adding it as an answer as I believe it may help other people to understand how these swtches work.
toughQuestions
