CircuitMaker: part without any net, how come?

Question

I have a circuit made in CircuitMaker, below is a fragment:

This is connected via I2C to the MCU:

However, when importing the parts in the PCB, there are no connections made:

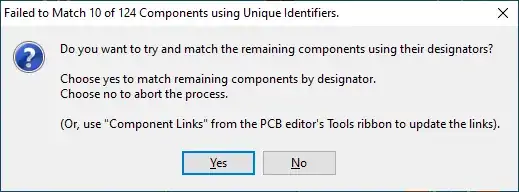

When I remove the J6 part, and I select: Project - Import Changes from Fuzz.PrjPcb, I get the following warning:

I select yes, and get:

I select Execute Changes, and Close. And I again see J6 without any net connections.

What should I change to be able to connect J6 to U1 (MCU) ?

I don't know ciruitmaker, so just general questions: Is your connector J6 off-grid in the schematic? i.e it /looks/ connected but isn't? take a look at the library symbol for J6, anything odd about those pins? Are both parts of the schematic on the same page, or spread over multiple pages? Could you have a space at the start or end of one set of net-names? — Yellow Yeti, Mar 19 '20 at 10:23
@YellowYeti It's not offgrid, it is connected (I don't get any Electrical Rules Check errors), Pins are passive (no manual changes made), both parts are on the same page, no spaces (same net names)... All valid questions. — Michel Keijzers, Mar 19 '20 at 10:35
@SpehroPefhany Yes, that was the problem, see my answer (just added to help others with a similar problem). — Michel Keijzers, Mar 19 '20 at 11:04

score 0 · Accepted Answer · answered Mar 19 '20 at 10:43

0

Problem is solved:

answered Mar 19 '20 at 10:43

Michel Keijzers
