1

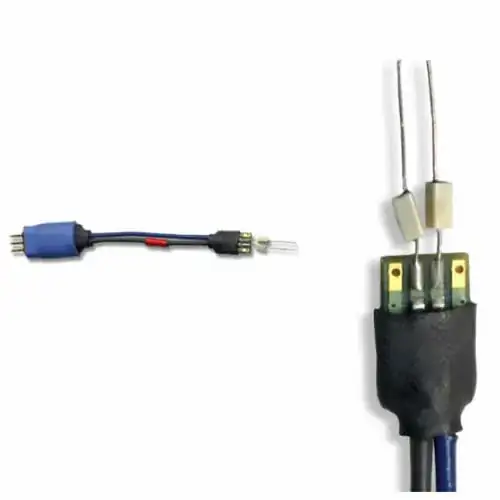

I'm trying to use a P7504 ($$$) "TriMode" scope probe, and unfortunately the resistors eventually break. Does anyone have recommendations for a 100ohm resistor that would replace the ones on the probe? A new set of just ends is $1600 enter image description here

Drewster
  • 483
  • 3
  • 10
  • For a $1600 probe? Might as well go with the best and I don't know resistors that are more precise or stable than metal foil resistors. – DKNguyen Feb 18 '20 at 21:45
  • I have used a similar Tek probe. For a 4 GHz probe, many parameters of the resistor may be critical. If I was making critical measurements, I would only use the exact resistor. – Mattman944 Feb 18 '20 at 22:09
  • Yes, that is why I reached out to ask what resistors are ideal to replace the ones on the probe :) – Drewster Feb 19 '20 at 16:41

1 Answers1

1

That's a 4GHz probe. This Vishay app note on high frequency parasitics may be of use.

enter image description here

One could imagine attaching wires to an 0402 resistor and adding a bit of epoxy... but..

A set of 50 ea. 100 ohm + 50 ea. 75 ohm appears to be a mere $700 from Tektronix. 020-2937-00

Spehro Pefhany
  • 376,485
  • 21
  • 320
  • 842
  • 1
    Thank you, Spehro - half the price of the probe kit for 50 of the resistors we actually need sounds more in-line with what we need. Hopefully this helps someone else, too – Drewster Feb 19 '20 at 16:42
