I have been teaching my son the basics of electronics by taking apart his old toys. We got to the level where we can fix things and put them back together. Last weekend we spent several hours putting the circuitboard of RC car #1 into RC car #2, because we lost the controller to #2, but still had the controller for #1 (which we completely disassembled).

I had to remove the connectors to the motors, because we had wires from yet another RC car #3. So we replaced the connectors for the motors on the circuitboard. Everything was working great, we were almost done, but I noticed that one of the motors was working only about 50% of the time. I thought it might be because the solder job was incomplete, so I touched it up at the junction I’ve circled in RED in the picture.

After that everything broke. Neither motor would work at all. When I plugged in the charger, the red LED which lights up when it is charging would flicker really fast. I’m not sure what I did, or how to fix it, or even if I can fix it...

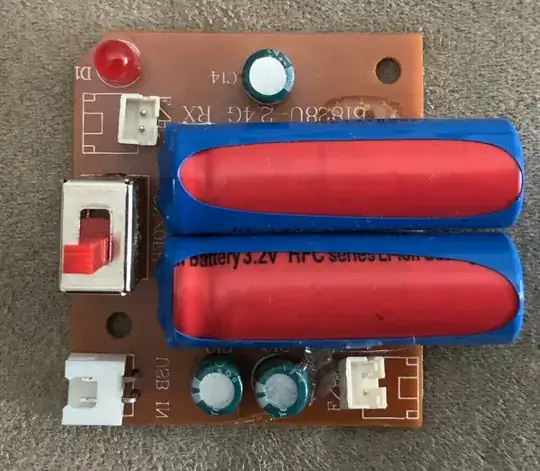

enter image description here enter image description here

Wapiti
  • 427
  • 3
  • 7
  • 10
    is that picture pre- or post-touchup? Because that, indeed, looks like a very bad contact. – Marcus Müller Feb 05 '20 at 20:17
  • 1
    Consumer repair question though, so off-topic. – pipe Feb 05 '20 at 20:18
  • 3
    The connection circled looks pretty bad as does the top one (usb in connection). The circled one also goes over the trace above it possiblshorter. The circle one also has something between the two pins that could be a short. – Passerby Feb 05 '20 at 20:26
  • Lesson of the day: never use acid-core type solder in standard electronics. Because this is what seems to have been used. – Natsu Kage Feb 05 '20 at 20:36
  • 1
    @NatsuKage: I don't think its acid core solder. I think its just lack of practice and poor technique causing poor joints. – JRE Feb 05 '20 at 20:46
  • 2
    You might also need a hotter soldering iron and some flux/flux remover to get better joints. – Justin Feb 05 '20 at 20:48
  • 3
    No need for flux. Just heat the joints and apply solder to them. There's enough flux in the solder itself. – JRE Feb 05 '20 at 20:55
  • If you have or can get one, try looking at these areas using an eye loupe. Something like 10x or 20x optical magnification. Hard to tell exactly what is going on from these photos. – rdtsc Feb 05 '20 at 21:12
  • 5
    your soldering technique needs work .... do not put solder on the iron tip ... instead, heat the component lead and the PCB pad with the tip and touch the solder to the component lead right where it joins the PCB pad ... allow the solder to melt and flow into the connection .... remove iron and allow joint to cool ... do not move any part of the circuit while solder is liquid ..... don't forget that the component wire should melt the solder, not the soldering iron tip – jsotola Feb 05 '20 at 22:03
  • @JRE From the looks of those solder points, OP could definitely use some additional flux. – J... Feb 07 '20 at 13:12
  • 1
    @J...: If you need more flux for those simple joints than your solder provides, then you are doing something horribly wrong. Learn to do it right rather than drown it in flux and hope for the best. – JRE Feb 07 '20 at 13:15
  • @JRE OP *is* doing something horribly wrong. I didn't say it shouldn't be possible to do it without more flux, but OP needs all the help they can get. – J... Feb 07 '20 at 13:21
  • 1
    @JRE - Flux usually helps me doing rework. When I'm trying to just touch up bad joints like these, I use a flux dispensing pen then heat the joint with the iron. Finally cleaning with a flux remover pen and alcohol. Maybe I'm unusual in rarely using new solder though. I was never really taught the right way. – Justin Feb 07 '20 at 18:38
  • 1
    @Justin I do that as well - a lot of rework, or just cleaning up an already bad job (as is the case here), just needs a touch of flux and a reheat. – J... Feb 07 '20 at 20:38

3 Answers3

36

Congratulations on spending time and effort with your son learning the practical aspects of electronics. [Be aware that this may have the effect of turning him into an engineer :-) :-) ].

It is possible that you MAY have to write this one off to experience, but, maybe not. There are some significant issues as seen here BUT it's part of the learning experience. In particular, see the sections on soldering and inspection at the end.

Others have commented on solder splashes and joints, but I'll add a few more suspect areas. Also some trouble shooting guidelines and some advice and a warning.

WARNING first:

Those are two Lithium Ion batteries which have high energy content and which could produce sudden flame and worse if shorted while soldering or altering the board. It is good to see toys using such "real" batteries, but also of some concern. As they are hard soldered to the board the best approach if soldering or working on the board is to treat them with GREAT care. Placing some tape insulation over the exposed tracks near the terminals and always having the switch OFF when working on the board will help but is not a complete solution. Other areas of the board are also battery-live but there are two many unknowns to identify them all.

enter image description here

Dead component(s):

It is possible but not certain that the 1 Ohm resistor (labelled 1R0) in the red ellipse at [D] at lower left is dead. It may just be burned but still functional.

The marks on the ICs in blue ellipses ([E] and maybe two more) MAY be due to heating damage but also may just be "conformal coating".

Connector connection integrity.

The connections to external connectors (white plastic 2 pin rectangles) must both be well soldered and MUST NOT be shorted by solder spatters. All of A B C need attention to soldering.

[A] and [X] lower pins MAY not be making contact.
All three connectors need resoldering.

Solder spatters:

The areas shown in green ellipses, and possibly others, exhibit solder spatters, substantial in some cases. In some cases these certainly short together pins that are not meant to be connected. These must be remedied. Excessive temperatures for too long can destroy components (especially IC's, transistors, diodes and connector housings). Experience helps.

Soldering:

There are many articles on the internet covering good soldering practice.
This is only a 30 second introduction! - Find some good tutorials.

Garglabet How to solder & videos & Images

  • The iron needs to be hot enough but not too hot - a temperature controlled iron helps. Relatively low cost temperature controlled irons are available.

  • Solder should be "60/40" lead based to start. Later you can try lead free solder if you wish - it is harder to make good joints with. "Wire" solder with internal flux should be all that is needed - additional flux can help in difficult circumstances but should usually not be needed.

  • Standard advice is to heat the joint first and apply solder to the joint and not the iron tip.
    My (longish) experience is that a mixed method works best. Apply the tip to the joint and after a short period (maybe a second or less?) apply the solder "wire" at the junction between tip and pcb so the iron starts the solder melting BUT the pad is hot enough to keep the solder melted.
    Long tip applications will burn pads and tracks and destroy components.
    To short application / not enough heating leaves dry dull rough solder surfaces and poor or no contacts.
    Experience helps muchly.
    Practicing on an old dead board that will not be used again helps improve technique.

  • Ensure iron tip is clean and "tinned".
    A tiny dab of solder on the tip AFTER making each joint helps keep it oxidation free while waiting for the next joint. (That's not a common recommendation but is long ago advice from a top solder manufacturer.
    If the iron has not been used for some while (say 1 minute plus) then a tiny solder dab on the tip pre use also helps.

Testing:

Ensure power is not on.
Ensure power is not on.
Ensure power is not on.

Use multimeter set to Volts (appropriate range) to test across connectors etc for power.

Set meter to Ohms range (low Ohms or "continuity beeper" is useful but higher Ohms ranges may also have advantages).

Test for NO continuity across twin contacts at eg A B C
You can also test on the top of the board across the connector pins.

Test for continuity between connector pin on top side and related track on under side of PCB. eg the 'connections' at A lower and B lower in the photo MAY be connection-free.

Stephen S
  • 185
  • 1
  • 7
Russell McMahon
  • 147,325
  • 18
  • 210
  • 386
  • `additional flux can help in difficult circumstances but should usually not be needed.` In cases like this, especially where OP seems to have an iron that's too hot, is probably working slowly (burning away flux before they're done) and poor technique, additional flux can *really* help, especially to keep the molten beads on the pads they're supposed to be, clearing between pads, and preventing peaking that can make bridges when removing the iron. – J... Feb 07 '20 at 13:17
  • 1
    This is a really great, detailed answer. I appreciate it a lot. I have a multimeter, so will follow your advice with the testing. I thought the other comments here about splatter were my problem, but it turns out those things that look like solder are actually leftover adhesive from a foam pad I peeled off. The biggest takeaway for me here (other than safety around batteries, which is huge) is emphasis on soldering technique -- I have been using an iron that is far too weak, only 12 watts, so I basically cannot even use good technique because it does not heat the joints sufficiently. – Wapiti Feb 07 '20 at 18:07
15

Those two joints look like they were cold soldered to me - the parts moved before the solder had cooled completely. So, bad connection to the circuit.

At the same time, there's a little splatter of solder that appears to be connecting the two pads. Those pads appear to be the pins of the connector by the LED. A bad connection and a short circuit there would be bad.

The dot at the end of the red lines mark the splatters. The blue lines mark some bad looking joints.

enter image description here
