I'm looking at a schematic for an old turntable that I am needing help on when viewing the capacitor values. All of the polarized caps will have 2 values written next to symbol i.e. C01 22/10 (MS). I'm assuming one is the voltage and the other is the µF rating.

My Google-fu was not strong enough to find this answer so apologize if it has been asked previously.

Schematic Snip

JYelton
  • 32,302
  • 33
  • 134
  • 249
kernisme
  • 211
  • 1
  • 3

1 Answers1

37

It almost always denotes capacitance / voltage rating.

Capacitance in µF, voltage in VDC.

For example:

  • 100/6.3 would be 100 µF, 6.3 VDC
  • 22/10 would be 22 µF, 10 VDC
Dave Tweed
  • 168,369
  • 17
  • 228
  • 393
  • 1

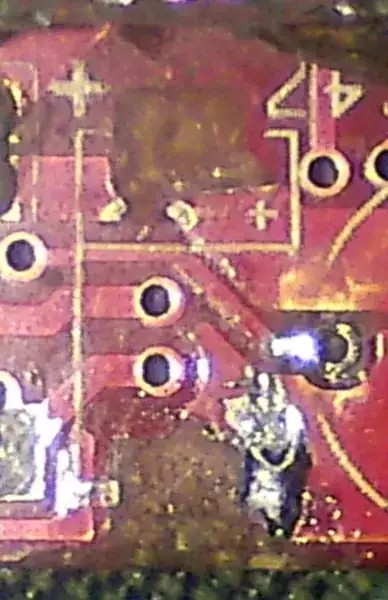

    If @kernisme has the old turntable available, it should be easy to confirm this -- at least some of the electrolytics should still have legible markings. – jeffB Aug 08 '19 at 16:15
