I know there are lots of similar questions and read them, but I need a simpler and clearer answer.

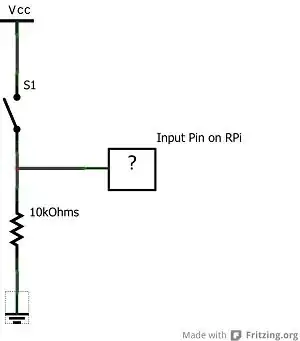

I understand why and how to use a pull up/down resistor when using a button (GPIO input). But while configuring a GPIO pin which will be connected to an LED, what is the use of these settings?

I tried no pull-up and pull-down and pull-up for example, but I could not see a difference in the implementation.

I am using STM32F407-DISC.

Peter Mortensen
  • 1,676
  • 3
  • 17
  • 23
muyustan
  • 2,046
  • 20
  • 54
  • 2
    Read the answer to this post. https://electronics.stackexchange.com/questions/156930/stm32-understanding-gpio-settings – Sorenp Jul 29 '19 at 09:40

1 Answers1

6

The pull up/down is only effective in Input or Open Drain configuration.
When set as output there is always an output MOSFET active, the pull up/down is then wasting energy.

The exception is open drain mode, this disables the P-MOS, then pull-up can be useful again.

Figure 25. Basic structure of a five-volt tolerant I/O port bit
