I have planned to build a circuit to display voltage and time value using PIC16F877A micro controller.To do this i tested the circuit using Proteus software as i attached here. It can display up to 5V.

my question is can i read up to 300V using this micro controller?(I planned to use LR8N3G voltage regulator to give input voltage to PIC).will it damage the PIC? If so how can I read high voltage from this?

Sahla
  • 1
  • 1
  • 1
    What's the lower limit of the voltage to be read? If it's too low (e.g. 1V) then a simple voltage divider may not work. I mean, you may need to build a "smart" divider *(i.e. activates/deactivates divider networks based on the input voltage)*. It also depends on whether the voltage is AC or DC. – Rohat Kılıç Feb 05 '19 at 04:46

1 Answers1

1

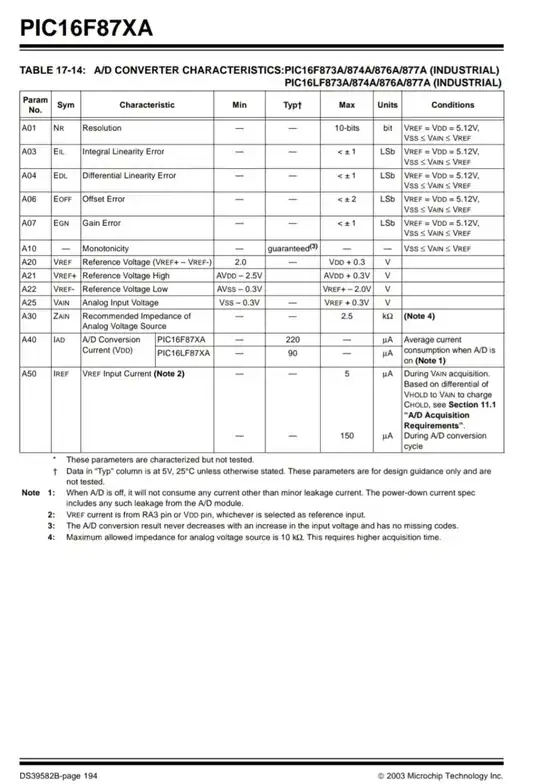

No, you usually can't read a voltage higher than the supply voltage of your microcontroller. To know exactly the maximum voltage that your microcontroller can read you need to look in the datasheet. You can use a voltage divider made of two resistors so that your microcontroller can safely read the voltage.

Here are its design equations:

$$ \begin{split} &\frac{V_\mathrm{in}} {Z1 + Z2} \cdot Z_2 = V_\mathrm{out}\\ \\ &\frac{(V_\mathrm{in} - V_\mathrm{out})^2}{Z_1} =\text{ Power dissipated by }Z_1 \end{split} $$

I suggest choosing \$Z_1\$ first.

enter image description here

enter image description here

If it's AC you'll need something else.

Be careful with high voltage. If you're not sure what you're doing, don't do it.

A.Lacasse
  • 93
  • 11
