I'm a mechanical engineer enthusiastic about learning electrical engineering and I speak french so I thank you in advance for your comprehension and your help.

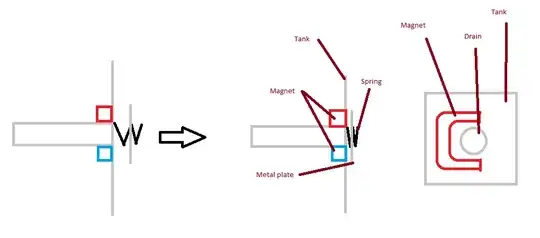

I would like to be able to activate an electromagnet to pull a pop-up switch throught a thin stainless steel wall (1 mm or 1/32 inch). I'm using an arduino but I guess an external power source will be necessary.

The magnet need to pull a spring to drain a liquid from a tank.

I know thant it would be easier to use a solenoid valve but I can't change the piping.

I was thinking of a u-shaped metal rod wire copper wiring and a relay but I guess that would need a lot of power. Which way would you recommend to achieve this goal?

Once again thank you for helping a mechanical engineer to convert to the electric engineering!

EDIT:

First of all, wow thank you for all theses excellents answers!

Is there any way for me to give you a positive feedback?

Secondly, the tank is non-magnetic but that is an excellent comment and I will need to be careful.

I think a lot of small magnets would do a pretty good job. This is so simple that I did not think about it.

I will try that and will update my post once I succeed!

user210482
  • 11
  • 2
  • Your horseshoe magnet design is going to require a lot of power to work. Better to use an electromagnet directed axially. – Hearth Feb 04 '19 at 03:46
  • 1
    In a U-shaped magnet most of the magnetic field (outside of the magnet itself) is between the ends of the U. You would want to wind a wire around the pipe to make a magnetic field that goes in the direction of the pipe, then loops back around. – user253751 Feb 04 '19 at 03:51
  • I assume you want to pull evenly on the metal disk. Instead of a horseshoe magnet, two or three or four straight magnets, all pulling in the same direction would be better. Or, if you can install it, a hollow solenoid that goes around the pipe. – TimWescott Feb 04 '19 at 05:49
  • 4
    What sort of stainless? If it's a non- or not-very magnetic alloy like 303 then this is a pretty good idea. If it's a 400 series alloy that's got significant magnetism, the tank wall will "short out" the magnetic circuit, and you'll rely on whatever can bleed through. That'll take a much stronger magnet. – TimWescott Feb 04 '19 at 05:50
  • A big rare-earth magnet (or magnets) on a motorized lever may take less power. – TimWescott Feb 04 '19 at 05:51
  • In addition to the alloy of the tank, what is the material of the pipe? If it's non-ferric or plastic it might help. What does the tank store? Would it be better if it was normally closed(Energise to open rather than energise to close)? – K H Feb 04 '19 at 18:43
  • It appears you are looking to fabricate a solenoid drain valve. Why not just buy a solenoid operated drain valve? – JRaef Feb 04 '19 at 23:53
  • First of all, **wow thank you for all theses excellents answers**! Is there any way for me to give you a positive feedback? Secondly, the tank is non-magnetic but that is an excellent comment and I will need to be careful. I think a lot of small magnets would do a pretty good job. This is so simple that I did not think about it. I will try that and will update my post once I succeed! – user210482 Feb 04 '19 at 23:30
