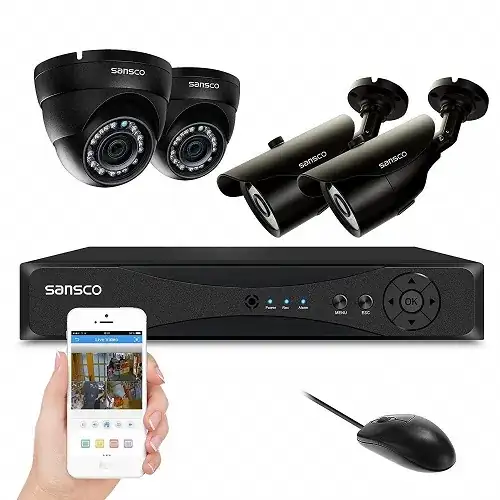

I just bought this outdoor security camera kit from Amazon.

Outdoor security camera kit

(Amazon product link)

When wiring it up, I noticed that I got a small sharp shock when touching the small screws on the metal casing around the cameras. I was wondering if this should be considered dangerous, or is this perhaps just static electricity?

The cameras are powered by a standard looking 12V power adapter.

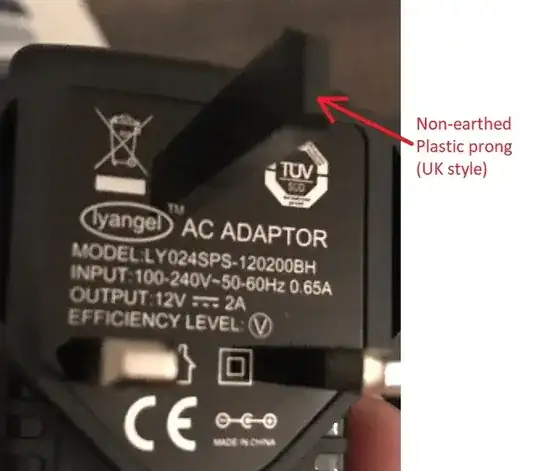

I've added a photograph of the rating on the adapter here:

Camera power supply - rating information

(Original image link)

Could something else be causing the shock? I fed the cables through an existing hole in the wall, so they sit alongside an existing power supply for outside lights. I wonder if this could be causing an issue?

Thanks!

SamGibson
  • 17,231
  • 5
  • 37
  • 58
Dave
  • 49
  • 2
  • 1
    there is capacitive coupling, say 100pF, thru the isolating transformer inside the "Black Brick" power supply. But there may be NO isolation, and your life is at serious risk. Does the product bear a legitimate "UL" sticker? – analogsystemsrf Nov 25 '18 at 17:11
  • 3
    I get static shocks all the time. They are quick and sharp. After the shock, I can touch whatever it was, and not get shocked. In other words, they do not create a persistent tingle when I touch something. If you have a persistent tingle, then it is not static. If it is quick and sharp and does not reoccur for several minutes afterward, then it may be static. Also, static is most common when the air is dry. If the air is moist, then static is unlikely. – user57037 Nov 25 '18 at 17:59

1 Answers1

10

It's not a strong electric shock else you'd be shouting that from the rooftops so, I am presuming you mean something more like an irritating tingle. Based on that assumption I would suggest that the power supply is leaking a little AC current from the power side through to the DC side and this side is also connected to the metal casing around the cameras. This leakage is controlled and is due to the component marked inside the red box below: -

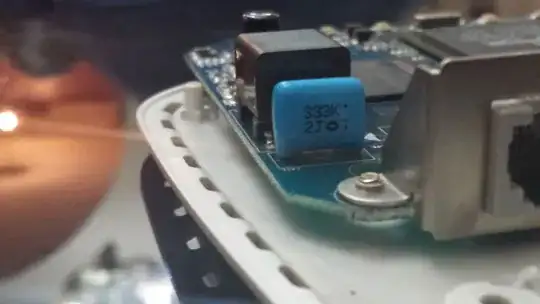

enter image description here

As you can see it bridges the isolation transformer and thus can inject a small current into anyone touching the DC side. That component is present to reduce EMI on the output and thus allow the power supply to meet EMC requirements. But the down side is that about 1 mA can be pushed through anyone touching the DC output if it hasn't been grounded.

If the AC power adaptor used a proper three pin plug it could meet the EMC requirements by adding a capacitor on the RTN pin to ground. Unfortunately this is a cost issue in a savage cost-cutting market hence the slight inconvenience of a tingle that is below the level where it can harm you. As you can see the normal conducting middle prong on the adaptor is plastic so, for EMC compliance it relies on the filter capacitor to connect to the un-isolated DC side of the appliance: -

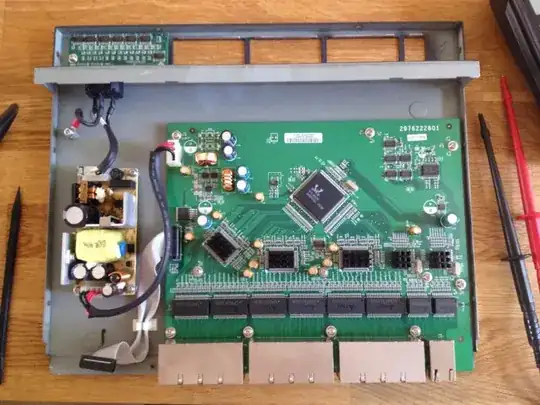

enter image description here

The circuit diagram is from this question and answer.

Do some investigation if you can and measure the current with your multimeter just to ascertain the current is below a couple of mA. If it is more than this then there may be something unsafe with your installation.
