I want to find a mini jtag connector (about 1.00mm pitch, 6~10 positions) to connect to the edge of my pcb. Something like these but with opening on the side so the PCB does not need to extend: http://www.digikey.com/product-detail/en/91930-21109LF/609-1588-ND/1001902

or

JTAG Connector

I spent lots of time searching, but still cannot find anything suitable. All suggestions for how to solve the problem are appreciated. Thanks in advance!

Community
  • 1
fangjun
  • 11
  • 1

1 Answers1

0

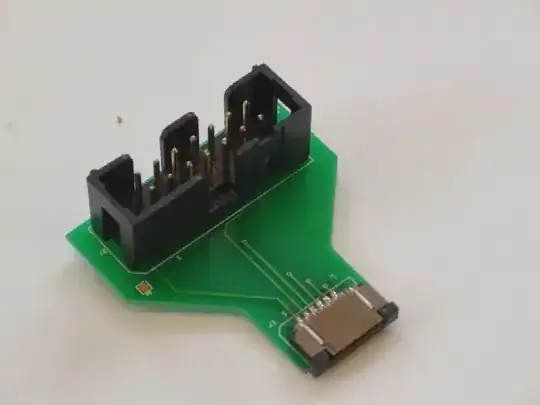

I've solved this problem by using the small 1mm contact spacing connectors on my board. I then use a Parlex type 1mm type flex cable to connect to the normal programming pod cable. See the example here: http://www.carousel-design.com/SiLabs_ICD.html
