My question is regarding the simple arrangement below:

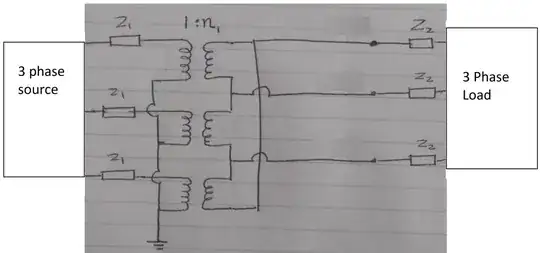

It is simply a three phase source feeding a load through Z1, followed by an ideal WYE DELTA transformer, followed by Z2.
My question is how do I refer the impedance Z2 to the left hand side?
Asked
Active
Viewed 215 times
1
Michel Keijzers
- 13,867
- 18
- 69
- 139
CKCK
- 91
- 1
- 9
-
It depends on what Z2 connects to and your drawing doesn't show that. – Andy aka Oct 05 '18 at 07:32
-
Z2 connects to a three phase load – CKCK Oct 05 '18 at 08:14
-
3 phase impedance transfer functions are easily found on the web. Have you tried? – Tony Stewart EE75 Oct 06 '18 at 19:05
-
@TonyEErocketscientist Im not looking for a transfer function, Im just looking how to simply refer the impedance to from the secondary side to the primary side. – CKCK Oct 07 '18 at 23:23
