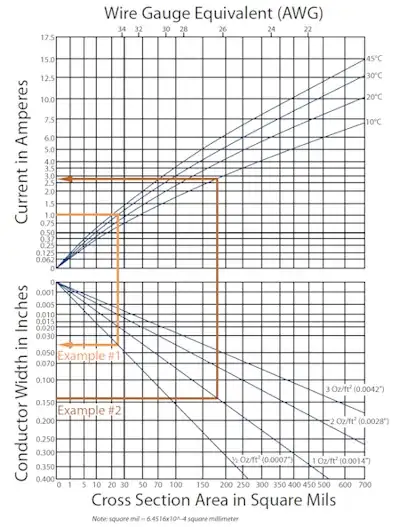

I found this nomogram, which also appeared in an answer here I think.

enter image description here

(larger version here)

Is there a metric version of this?

Federico Russo
  • 9,658
  • 17
  • 68
  • 117
  • Just for reference: [here](http://electronics.stackexchange.com/a/5405/4950) is the answer, that explains how to use the nomogramm. – PetPaulsen Aug 16 '12 at 20:40

1 Answers1

4

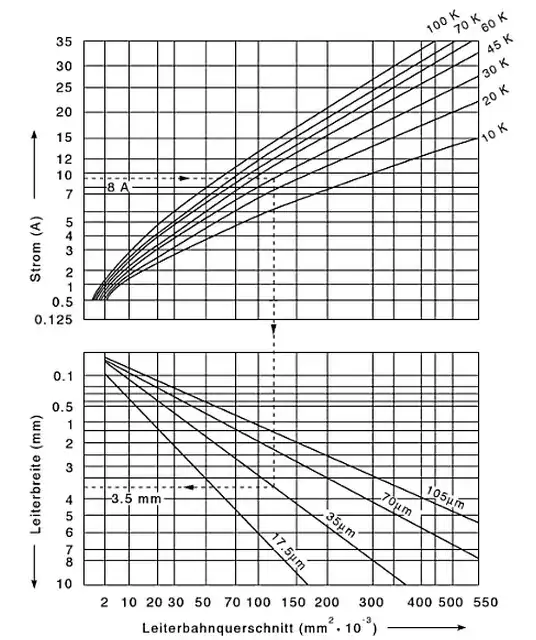

In the german book "Taschenbuch der Elektronik" you will find such a nomogramm on page 641:

Nomogramm

The axis are the same as in the version you provided.
