I'm trying to learn about PLC (I know the risks), so I want to start with the simplest circuit specified in the LM1893 datasheet to use on 220v AC powerline. The transformer there doesn't have any specs, how can I choose a suitable transformer for that purpose?

W5VO
  • 18,303
  • 7
  • 63
  • 94
ausrasul
  • 31
  • 1
  • 1
    Related: [What better options are there than the LM1893 for powerline communications?](http://electronics.stackexchange.com/q/13520/8159) – Renan Aug 06 '12 at 03:35

1 Answers1

2

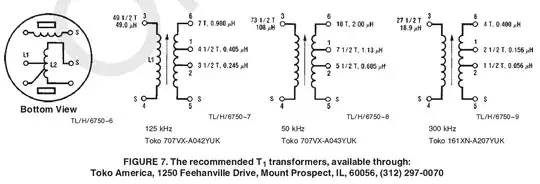

fig.7 on p.9 in the datasheet shows recommended transformers.

enter image description here

Notice also that LM1893 itself is obsolete (watermark in the datasheet).
