PCI express cards have an edge connector with a little notch in it to prevent the card from moving if the socket is longer than the connector. Additionally, the printed circuit board has a protrusion in front of the actual connector. What is its purpose?

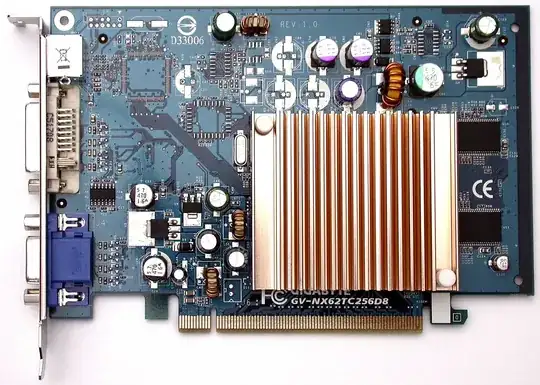

Depicted below is a PCIe card. You can clearly see the protrusion I mean to the left of the edge connector. PCIe card

Picture from Wikimedia Commons by Clemens PFEIFFER, Vienna.

FUZxxl
  • 490
  • 3
  • 17

1 Answers1

42

According to the PCI Express Card Electromechanical Specification 1.1 it is to prevent insertion into a standard "non-express" PCI socket.

Excerpt from linked document

http://read.pudn.com/downloads166/ebook/758109/PCI_Express_CEM_1.1.pdf [page 72]

Manu3l0us
