3

I want to charge a capacitor using static electricity generated by me (walking on carpet etc.) and try power a small LED or if that doesn’t work a reading on the voltmeter would be fine (it’s for a science project). I know the total power output would be low though. I was planning to have a metal plate on a wristband and the capacitor connected to this and then to ground, this I think should charge the capcitor from what I understand. Would this work?

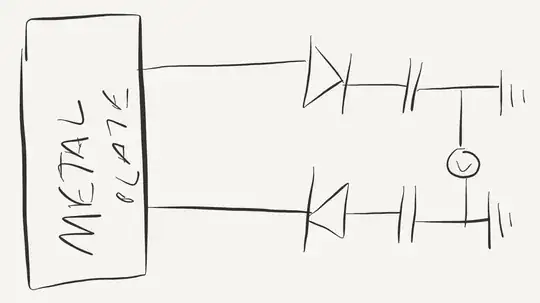

EDIT Here’s a diagram/sketch of my current circuit

The capacitors are 10uF 63V. The diodes are 1A 200V. Currently there’s a voltmeter but I would like to have a neon light. I have a 90V and 80V neon light which could be used.

enter image description here

Henry
  • 133
  • 1
  • 5
  • YOU are a capacitor. Hold one connector from the light (neon or fluorescent) in your hand, scruff across the carpet, touch the other leg of the light to a grounded object. Zap! There is light! – JRE Sep 09 '17 at 19:28

1 Answers1

3

You can't guarantee the polarity of the charge and so some form of rectification is needed to ensure that any current is passed through in the same direction irrespective of polarity. This could be achieved with two capacitors and two diodes so that you can store the energy from positively and negatively charged people on two separate capacitors.

The diodes should have an extremely low leakage to prevent charge being lost. The capacitor should also be chosen to have very low leakage for the same reasons.

I think I'd also consider having a spark-gap protection device across the input to the diodes to prevent over-voltage damage. If you use the carpet static value value below to work out the capacitance and voltage rating you should be OK: -

enter image description here

20 mJ = \$\dfrac{CV^2}{2}\$ and if you chose 1 uF, the voltage rating would need to be: -

\$\sqrt{\dfrac{2\times 20\times 10^{-3}}{1\times 10^{-6}}}\$ = 200 volts.

For 10 uF the voltage rating would be 63 volts

1 nF would require a voltage rating of over 6000 volts.

I was planning to have a metal plate on a wristband and the capacitor connected to this and then to ground, this I think should charge the capcitor from what I understand. Would this work?

I would consider the capacitor(s) and diode(s) to be fixed and let folk walking around discharge themselves to a plate connected via the diode(s) to the capacitor(s). It might be a good idea to issue conductive thimbles so that folk don't feel the spark that might jump to the plate. Safety should be considered and the diodes will prevent someone getting a full energy discharge if they touch the plate.

Andy aka
  • 434,556
  • 28
  • 351
  • 777
  • 1
    Plus, if you have a big enough capacitor charged to (say) 15kV it will possibly kill you – Dirk Bruere Jul 31 '17 at 10:57
  • Thanks for the info. The reason I want it as a wristband is it’s for a project and I’m going to be giving a presentation and it’ll be quite cool to have it on my wrist but the idea you’d suggested sounds very interesting and I would try it later on. – Henry Jul 31 '17 at 21:44
  • So I sort I’d have a metal plate (touching the person) connected to a rectifier which is connected to two capacitors one for positive and negative charges of the person. Then to a spark gap protection and from there to an LED. Also what amperage can I expect? (Just want to confirm I undtedsnd it correctly) – Henry Jul 31 '17 at 21:49
  • Two problems, one easy one hard. The easy one is the spark gap needs to be from the plate to ground because it has to protect the diodes as well as the capacitors. A neon lightbulb would work and limit the max voltage to less than 100 volts. Then the led is trickier because it only needs about two volts and, if you are not careful you'll have an led circuit that doesn't allow the cap to charge to many tens of volts. What you really need is a circuit that decides the cap voltage is above a certain value say 20 volts so that a buck regulator is switched on to efficiently convert the energy..... – Andy aka Jul 31 '17 at 21:57
  • .... from a high voltage level with low current to a low voltage level at a higher current that is more suitable for an led. – Andy aka Jul 31 '17 at 21:58
  • Sorry for the late reply. I couldn’t get 10uF caps at 63V but I could get 10nF at 63V. If I connect 10 of them in parallel they would be fine? – Henry Sep 05 '17 at 18:42
  • Do the math properly. – Andy aka Sep 05 '17 at 21:40
  • Okay I found the right caps and made the circuit but I’m getting voltage values around 0.1 - 0.4V. I’ve got a diode connected to a capacitor (2 sets of these, one for positive and one for negative), the diode sides are connected to a piece of foil (for the person to touch), caps are connected to the multimeter. I walked across the carpet for a couple secs, rubbed a jersey etc. and touched the foil but still get the low voltage (no spark was seen but it should be higher than that). Any ideas? Thx – Henry Sep 08 '17 at 20:56
  • Add a diagram of your circuit showing component values to your question. Add it at the end and please clearly show it as an edit so that the original question text remains unchanged. – Andy aka Sep 09 '17 at 09:36
  • Okay I’ve added a diagram of my current circuit – Henry Sep 09 '17 at 15:27
  • That won't charge anything. One capacitor terminal needs to connect to solid ground/earth and the other terminal to the plate via the diode (what diode have you chosen?). – Andy aka Sep 09 '17 at 17:26
  • Should it be like that? (Updated circuit in pic). I used 1A 200V 75nS diodes – Henry Sep 09 '17 at 18:20
  • That's better but your voltmeter is in the wrong place. – Andy aka Sep 10 '17 at 18:26
