standard ethernet pinout for M12 A coded

Question

I would love to follow the most common pinout (I design connector and receptable, but you never know).

I find conflicting sources:

-RJ45 connector exact same pinout number by number:

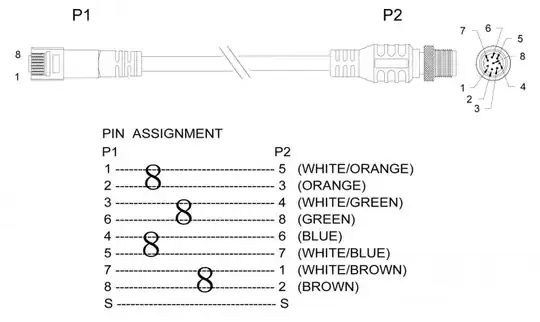

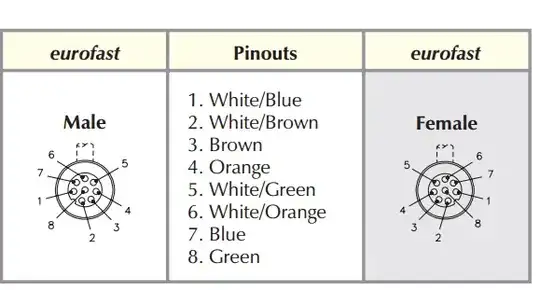

-A big cable producing brand Turck seems to have another "standard", I did see this at one of our clients:

Or, is there no (de facto) standard?

UPDATE: we are using the Turck standard on all our cables now. This seems the de facto standard.

score 4 · Accepted Answer · answered May 12 '17 at 00:54

4

Mouser M12 Vs RJ45

On page 2 of this info sheet from Phoenix Contact, it says "There is still no agreed standard on wiring an eight-pin variant for Industrial Ethernet."

Hope that helps

answered May 12 '17 at 00:54

lgflorentino

130
6

1

thanks. FYI I got an answer back from Turck. They labeled their own pinout as "CORRECT" and the pin-by-pin with RJ45 connectors as "INCORRECT" (but I guess, that's their view :) ) – lode May 15 '17 at 21:42
Here's also an HTML version of the linked article: https://iebmedia.com/index.php?id=5873&parentid=63&themeid=255&showdetail=true – Tobias Kienzler Jun 04 '20 at 14:21

JEF · Answer 2 · 2022-12-09T21:36:32.233

2

Below a table I made of the most widely used standard I have seen. Hope this helps someone out. This does match the "Turck" standard.

edited Dec 09 '22 at 21:36

answered Dec 08 '22 at 20:04

JEF

21
3

2

This confirms the "Turck" layout from in the question. I have indeed not seen other layouts since. – lode Dec 08 '22 at 22:38

score 0 · Answer 3 · edited May 11 '23 at 13:49

0

OR this.

^{Source: https://bilder.tragant.de/produkte/orig/5c51a102e4ef30.77076833.jpg}

I use M12 A-code. But I decided to use the same standard as X-code. We now always order cables from China.

^{Source: https://bilder.tragant.de/produkte/orig/5d7f5208916659.72117111.jpg}

edited May 11 '23 at 13:49

Voltage Spike

75,799
36
80
208

answered May 11 '23 at 10:06

Chris

1
1
