Im trying to do an UPS for a new proyect with a li-ion battery like cellphones ones, it needs to be reliable as I would like to left it at home without surveillance. I have found this: answer from and old post. enter image description here

I would like to know if this works now a days, as the Post is 4 years old now, Mosfet life cycle is in "end of life" so maybe can be replaced for a new one, as far as I understand the load V is going to get determined by the drop in the Mosfet, I need 5v so maybe someone can recommend any other Mosfet with low drop?

I found this IC= BQ24079RGTR, and as far as I understand it does the same function as the circuit above?

Community
  • 1
Gaspar Catalan
  • 25
  • 2
  • 9

1 Answers1

1

So to cope with the voltage drop I would recommend adding a boost converter behind the MOS-FET. It will be fine if the 5V of the usb input go through it and will also improve the stability of the voltage it outputs.

For the MOS-FET you should try to get one that has pretty much the same characteristics as the one in the schematic. Most important values are the gate-source voltage Vgs and the on-resistance vs. Vgs, because if these are different the MOS-FET might not fully turn on/off.

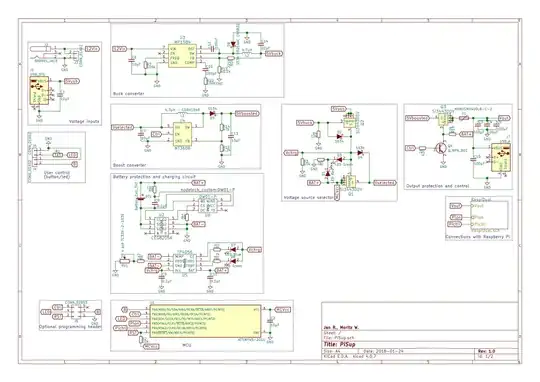

Since I've actually taken the above mentioned circuit and improved it a little bit. You can check out the whole circuit schematic and a video about it over at instructables. Maybe you can reuse my circuit. Heres the schematic: enter image description here

enwi
  • 43
  • 8
  • 2
    I like instructables, however, now it's a linkedonly answer, so you should either elaborate about the answer/method to answer it without the link needed, or make it a comment. – Michel Keijzers Mar 01 '18 at 14:17
  • 1
    If I had 50 reputation I could comment, but I think I can throw in the schematic right here. Thanks for the suggestion. I will add the schematic once I am back home. – enwi Mar 01 '18 at 14:22
