2

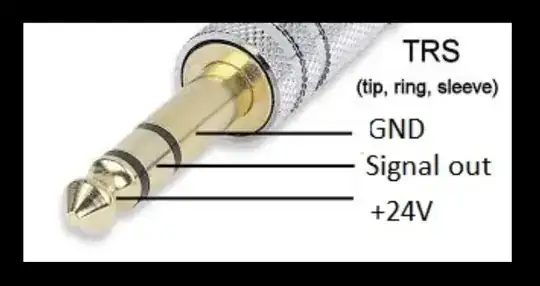

There is a device which is powered and also outputs signal by its TRS connector as shown below:

enter image description here

This TRS connector needs a female correspondent for my circuit. I made a small board and need to add my schematics the female jack of this TRS.

In KiCad there is the following symbol:

enter image description here

But Im not sure if it is a TRS female jack, since 2 and 1 are seems connected.

Is this how it supposed to be?

user16307
  • 11,802
  • 51
  • 173
  • 312

3 Answers3

1

But Im not sure if it is a TRS female jack, since 2 and 1 are seems connected

It's not the jack socket that you want. The jack socket you show is suitable for a standard mono jack plug. Notice the difference between the two plugs: -

enter image description here

The socket symbol you have is one that has a contact operated when you insert the plug. What you probably need is a three pin symbol like this: -

enter image description here

Andy aka
  • 434,556
  • 28
  • 351
  • 777
1

What you have is "jack_2P", which at first glance seems to be for TRS (Tip-ring-sleeve), except it only shows 2 pins from the cable and 1 extra. The extra pin in the jack is like a switch that disconnects from pin one when the plug is inserted (it bends). Thus it almost looks like your jack is for a 2-pin cable.

Below is an example of what you want; a jack for TRS (a 3-pin cable):

TRS jack pinout

Again you have an extra pin, of which is just there as a switch. But now you have the ring (aka shield/ground), and the other two conductors.

The thing is, my diagram looks pretty much your like your diagram, except the ground has it's own pin.

It's possible that your "jack_2p" is the same thing, and that the ground is just not shown as a pin. You may still be able to connect to it.

Bort
  • 5,102
  • 5
  • 31
  • 56
0

Pin 2 is an extra switch to disconnect something, for example the speaker when an earphone is plugged in. In Hi-Z audio inputs the switch shorts the input to reduce the hum and buzz that a Hi-Z input easily collects when nothing is plugged in.

Your symbol is for mono plug, there's no wire for GND. Find a female stereo TRS jack.

Beware: Hot +24V is extremely easily shorted, if your male connector is the output.

  • Why would it be easily shorted? Im kind of worried now. Yes male is the output of the device and female will be in my circuit. – user16307 Mar 01 '17 at 14:14
  • @user16307 it's very easy to position something metallic between the +24V and the GND - anything!- coins, tools, some metallic box... A tenth of a second is enough to smoke if your +24V supply is not protected against a high current shorting. Normally hot outputs are well hidden out of uninteded touching. –  Mar 01 '17 at 14:20
  • Yes tip will be 24VDC. Is there a risk during the insertion of plug to the jack? – user16307 Mar 01 '17 at 14:29
