I building an interconnect board which will hold one side of the video balun pair (plus power and rs485). The other side will be a commercially available video balun which connects to the camera.

Right now I am having trouble matching the two sides.

I ordered three coils from coil craft - PWB3010LB, PWB-1.5-ALB, and WB1010-SMLB

All of them transfer the video, but the vertical sync is off by ~40%. the colour is slightly off (a little bit pink), but otherwise the video is fine! :)

What does the vertical sync problem indicate?

Thanks!

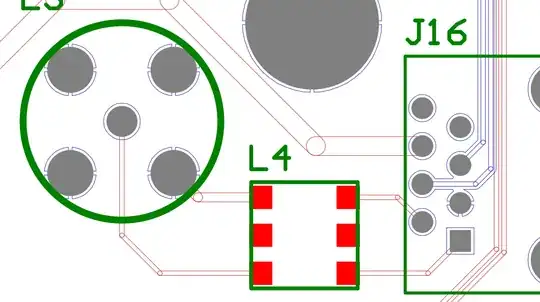

enter image description here

michael
  • 251
  • 1
  • 8

1 Answers1

3

It looks like you are transformer-coupling the video. The problem is that in order to preserve the vertical sync pulse, you need a bandwidth extending down to well below 60Hz (the field rate), otherwise you will see excessive 'tilt'. The PWB3010-1LB is specified with a bandwidth down to 3.5kHz (presumably in a 50\$\Omega\$ system) and this is nowhere near low enough. The way commercial video baluns are connected is like this :-

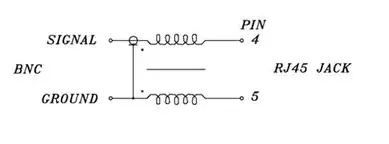

Video balun schematic

This arrangement ensures that both sides of the twisted-pair have an approximately equal impedance to ground and has a bandwidth down to dc (so there is no galvanic isolation - which may be an issue for you). The symmetrical footprint of the Coilcraft transformer means that it can be rotated through 90° to configure it like this.

MikeJ-UK
  • 5,348
  • 15
  • 20
  • hmmm, do you know any sources for coils appropriate for this application? – michael Mar 28 '12 at 19:06
  • @michael - It looks from your layout that you could just rotate the transformer by 90 degrees and try it out - it might be OK. – MikeJ-UK Mar 28 '12 at 19:46
