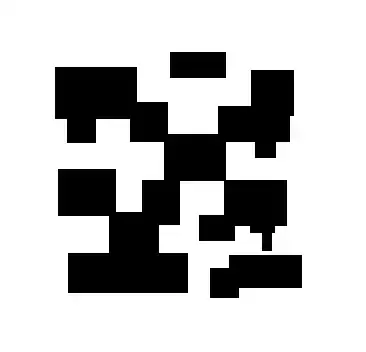

I came across a test pattern a few years back in a robotics laboratory that I remember being told was some sort of test pattern to train cameras for robotic vision. It was like some sort of checkerboard pattern but it was not a uniform pattern. The image is my best rendition of it. Does anyone know what this type of pattern is called and what its use is?

stbtra
  • 2,346
  • 3
  • 21
  • 28

3 Answers3

6

A fiducial?

alt text a
alt text b

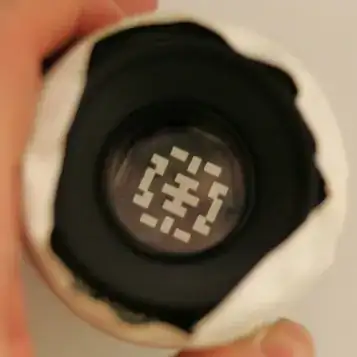

A coded aperture for computational photography?

alt text

A 2D barcode or bokode?

alt text

Glorfindel
  • 1,245
  • 3
  • 15
  • 20
endolith
  • 28,494
  • 23
  • 117
  • 181
  • ah figured out what it was, but that coded aperture is pretty interesting, glad you posted that. – stbtra May 19 '10 at 05:35
2

Another possibility is that it is a "non-repeating pattern" used to establish register between two cameras.

Monica
  • 589
  • 2
  • 2
1

Ok turns out it was a camera calibration pattern.

edit: NM my mistake

Community
  • 1
stbtra
  • 2,346
  • 3
  • 21
  • 28
  • 2
    Which one matches the image you supplied? – W5VO May 19 '10 at 07:34
  • 1
    Agree with W5VO... most of the pictures on that page look like sheets of dots, not the pixelated creature in your post. – J. Polfer May 19 '10 at 20:17
  • Yeah, Google Image Search just finds regular patterns of dots or checkerboards: http://google.com/images?q=camera+calibration+pattern It's probably a fiducial marker. – endolith May 19 '10 at 21:30
