All the time I hear that the tab on a TO-220 like package is electrically connected to the centre pin, for example "out" on voltage regulators.

Does mounting them to a heatsink (of which may come in contact with tracks on the PCB) or casing for heat distribution not matter? My worst case thoughts are more than one regulator mounted on the side of a casing, and 5V and 3V coming together (harmless, but something)

Tom Paris
  • 272
  • 1
  • 3
  • 9
  • 3
    It is not safe in general. Although 78 series regulators have their 0V connected to tab, many other components have Collector or Drain connected to tab, and depending on your circuit, these can be high voltage or a different voltage to other component's tab so cannot be connected together. In that case, use either an isolated package or insulation tape eg Kapton tape or Sil-pad to insulate the tab from the heatsink. This comes with a thermal penalty. – Martin Feb 17 '12 at 09:14
  • Furthermore, not all voltage regulators have "out" on the center pin. LM337 is a counter example. – Fizz Oct 01 '15 at 20:22

2 Answers2

15

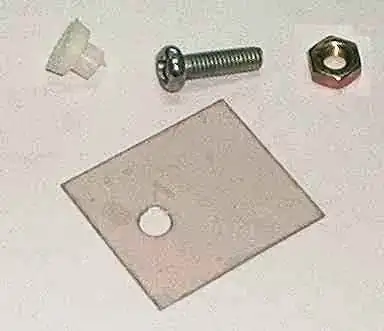

If your heatsink is connected to another net than the TO-220's tab you need some insulating materials to mount the TO-220 on the heatsink. In the old days they used a thin pad of mica for this, but today different materials (plastics) may be available that insulate and at the same time allow heat transfer to the heatsink. Martin mentions Kapton, but I'm not sure if that is a good heat conductor. Use thermal paste on both sides of the pad. You also need a round insulator to insulate the screw from the TO-220 as well. Some heatsinks come with the required stuff, or sometimes you can buy it in a small kit.

enter image description here

stevenvh
  • 145,145
  • 21
  • 455
  • 667
  • The thermal conductivity of Kapton isn't that important here; it's usually just a couple mils thick. The plastics I've used are high thermal conductivity silicone, but there are other materials. Digikey has many types: http://search.digikey.com/us/en/cat/fans-thermal-management/thermal-pads-sheets/1179751 – Kevin Vermeer Feb 17 '12 at 15:35
10

Whether grounding the tab or connecting it to heatsink is safe depends on your circuit.

You can largely decide if is is safe in the same way that you'd decide in any other case whether connecting two or more chosen points together were safe.

The tabs offer you an interconnection option - you have to decide whether to accept their offer. If the offer is to be declined you will need some insulating mounting "hardware" such as Steven has shown. Make sure you are doing what you think you are doing when you use any such systems. In systems above a few Watts of power a TO220 device can fry in seconds if heatsinking is almost but not quite connected.

Some ICs offer isolated tab versions with the tab encased in plastic with a suitably high voltage rating. Connection then can be made via the middle lead.

eg If the ICs concerned were all 78xx family regulators with the tabs all at ground potential you may decide that grounding the heatsink and connecting all tabs electrically to it was acceptable. But if eg you had an LM7805 (+5V regulator) and an LM7912 (-12V regulator) you would find that the LM7805 tab was at ground but that the LM7912 tab was at -Vin. Connecting both these points together electrically via the heatsink may produce some interesting magic smoke but would be liable to spoil your negative supply source's day (as -Vin and ground would be connected, and ground usually beats rock, paper, water and -Vin.) In this case you would want to electrically isolate one or both of the tabs from the heatsink. Having the heatsink at electrical ground is often an OK choice. Having the heatsink at - Vin is usually a really really really bad idea. If the heatsink MUST be connected to something electrically then connecting it to ground is usually the only safe choice.

Sometimes you may decide to not connect a grounded tab to a grounded heatsink and to use insulating hardware just as you would if the tab was not at ground. For example, you may expect a ground loop to occur in some systems if the tab was grounded both to the heatsink and also within the circuitry connected to it. In audio equipment earth loops are to be avoided like the plague and, if you care about low level analog signals (such as ADC inputs from wherever) then ground loops will be unwelcome.
