Is this a reasonable way to do a wiring diagramme. What are the common practices when making this sort of thing?

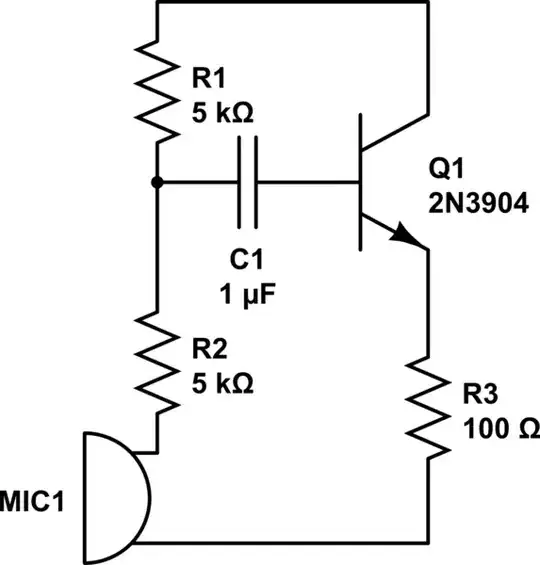

Basically I am a compleat beginner and would love to know if this is a proper neat way to represent a circuit schematic.
Asked
Active
Viewed 280 times
1
DobbyIsDead
- 11
- 2
-
What do you mean by "wiring"? Is it a PCB or a cable interconnected components? – Eugene Sh. Jul 27 '16 at 14:28
-
It's okay. You could make the diagram less cluttered if you made use of Ground and Vdd symbols - the majority of the wires would then represent signals rather than power supply nets. Personal preference, I guess. – Dwayne Reid Jul 27 '16 at 14:29
-
@EugeneSh. I am using Vero board it is just a representation of connections – DobbyIsDead Jul 27 '16 at 14:34
-
So it is a circuit schematic. – Eugene Sh. Jul 27 '16 at 14:35
-
@EugeneSh. Sorry, yes – DobbyIsDead Jul 27 '16 at 14:38
-
Just to be sure, you aren't asking for us to point out any obvious errors in your schematic, right? Only the drawing style? – Justin Jul 27 '16 at 14:39
-
The #1 improvement would be to use power and ground symbols instead of routing them all around. – Justin Jul 27 '16 at 14:40
-
@Justin yes, but If you see an obvious error then I would appreciate it. – DobbyIsDead Jul 27 '16 at 14:46
-
2This question is yet answered [here](http://electronics.stackexchange.com/a/28255/104387). – Antonio Jul 27 '16 at 14:49
-
You could use some net names & to avoid crossing of nets, which makes it look less cluttered, you can break the nets by providing same net names & leave them hanging so the same net name will connect them. – Oshi Jul 27 '16 at 17:06
