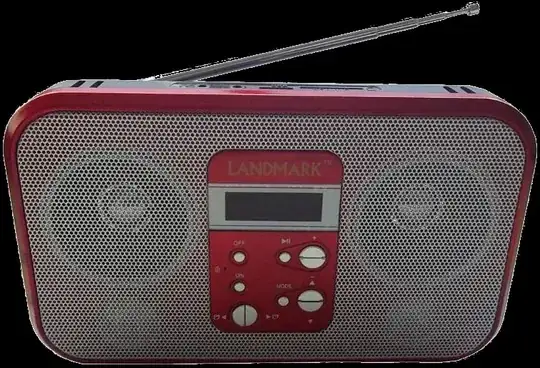

I have this Chinese Portable Rechargeable Mp3 player.

It has a two pin plug connector behind that is used to recharge it and some generic rechargeable non removable battery inside it.

It has the following connecting points on the top:

  • Speaker out
  • Line in
  • Usb
  • Sd Card

Whenever I play it with the plug connected to wall outlet, it has mains current flowing through the line out and speaker out. When I insert one end of the 3.5mm pin in the speaker out, I get full 220 volts shock in the other 3.5mm male pin end.

I tried doing this with the other line in port too, even that is releasing 220 volt current. This happens only when it is plugged in for charging and used. It does not happen when unplugged and played.

I am uploading few pics.

portable rechargeable fm mp3 player player opened and inside view

The red wire is for the antenna

I want to correct this design flaw. I want to add ground to this device. (am I right with my decision?). where should I solder a third wire on the circuit board for ground?

______________________________________

RM: IT IS ALMOST CERTAIN THAT THE RADIO IS "DESIGNED" TO BE CHARGED FROM A LOW VOLTAGE AC SUPPLY AND NOT FROM MAINS.

While it is not 100% certain what all the circuitry present is it seems that the diode bridge that converts AC input to DC is connected directly to the battery. Even a low voltage power source would damage most batteries if used this way. Connecting AC mains is liable to damage the device, the user and the battery.

Red is (probably) positive.
Green is (probably ) negative.
Purple is AC.

enter image description here

Emmanuel Fernando
  • 69
  • 3
  • 4
    throw it away. now. there is no way to "fix" it. – PlasmaHH Jul 05 '16 at 09:38
  • 8
    Adding a ground connection is like placing a bucket under a leak in the roof of a house when it rains. It does not solve the base problem of the leak in the roof, in your case: the lack of proper mains isolation in the power supply. – Bimpelrekkie Jul 05 '16 at 09:49
  • 2
    @FakeMoustache: more like a house without a roof. It looks like the "mains" input is really a low voltage DC input – PlasmaHH Jul 05 '16 at 10:07
  • 3
    Can you post a picture of the supply wire or charger they sold you with this P.O.S? Maybe they put a charger into that line and just used a mains connector when they should have used a low-voltage connector?! Maybe the charger is seriously flawed? – zebonaut Jul 05 '16 at 10:10
  • 4
    Considering the earphone connector I think it is not music player. Probably it's a part of a chinese electric chair. – Ariser Jul 05 '16 at 10:10
  • 4
    Starring this question for future reference. It's a stellar example of safety being totally neglected. BTW, if you have bought it in a respectable shop, you may probably sue some money out of it, or at least return the damn thing and get your money back. – Dmitry Grigoryev Jul 05 '16 at 10:13
  • 1
    This product is not legal anywhere in the world. Sue the seller and/or hand it over to your country's electrical saftey agency! Don't use it! If you bought it locally, bring it to the medias attention so that people won't buy it unless the electrical saftey agency forces them to pull it from the market. – winny Jul 05 '16 at 10:24
  • 1
    Thanks all for your comments. the charging cable is a simple two pin plug wire. full Ac 220 flow. No eliminator or transformer. But you know what.. the device has a sticker behind where it is mentioned in the last line . "Do not use it while it is charging. It "may" cause shock. " I never thought that was a so severe instruction. – Emmanuel Fernando Jul 06 '16 at 17:05
  • 1
    The player isn't broken, it has a design flaw and the question is about correcting that. IMHO, that makes the question about design, not repair ... voting to reopen. – Tut Aug 18 '16 at 11:40

3 Answers3

11

There is no way to fix this. Look at the picture: The mains input goes onto the PCB without any means of isolation. There is no transformer, and there doesn't even appear to be any cheapo alternative that might, probably, be acceptable - like two safety rated capacitors that might allow charging the batteries while maintaining isolation. Those capacitors would have to be very small in value because otherwise, they would allow a significant (read: dangerous) current to earth.

If you were to introduce an earth connection, it would, at best, cause your fuse to blow. At worst, the earth current would set stuff on fire.

Having no earth wire, it would have to be a class II device. This means that the entire circuit must be isolated to the user in a proper (double/reinforced) way. This is not happening here (antenna, battery compartment may be accessed, pushbuttons, headphone outlet, speakers, ... pretty much anything on this f-iretr-ucking piece of lethal junk.

Also, there is no way the two little black wires coming from the input connector are rated for mains voltage levels. They may cause a short between the two input contacts, causing a fire.

This device is a death trap, and it has taken the idea of making stuff cheap way, way, way too far. Return it to the dealers. Tell them you're serious about putting them out of business if they don't stop selling such warez, immediately.

zebonaut
  • 18,170
  • 4
  • 60
  • 104
  • 5
    Good point. Dealers selling such stuff should face trial and jail. It's like a gun with two barrels pointing into the opposite direction. – Ariser Jul 05 '16 at 10:16
  • Absolutely right. Death trap it is. I hope my question helps other people to know what is going on with cheap build devices. But you know what.. the device has a sticker behind where it is mentioned in the last line . "Do not use it while it is charging. It "may" cause shock. " I never thought that was a so severe instruction. – Emmanuel Fernando Jul 06 '16 at 17:00
9

This thing cannot be fixed.

Here's why: There seems to be no isolation between mains side and most part of the circuitry. If you try to earth something in the circuitry you probably will produce a short circuit. Most likely the device will let out much of the blue smoke then. If you are unlucky it will wait until you leave and incinerate your house.

If you are lucky your RCD and/or circuit breaker / fuse will blow.

A missing isolation cannot be fixed by trying to pull the potential of the mispowered parts of circuit to earth, because the connection to the AC mains has to be severed first. The analogy to the broken roof is not bad but I think it fits better if you try to put a garden hose into a hole in a hydro dam to redirect the water shooting out.

In fact: despite your tries to fix this thing it will keep violating any electricity code of any country and regulatory body of the world. It is in fact by its very design a criminal act. Mains voltage must be separated by isolation from touchable conductive parts. This cannot be implementated later on.

You should take measures that this thing leaves the surface of the earth without being plugged into any outlet again. I recommend removing the two prong mains receptable before throwing it away.

Ariser
  • 3,846
  • 3
  • 23
  • 43
  • Thanks. For your suggestion. Definitely it is a killer machine. I hope my question throws light into how electronic devices are manufactured by violating basic electronic safety guidelines in certain coutries. But you know what.. the device has a sticker behind where it is mentioned in the last line . "Do not use it while it is charging. It "may" cause shock. " I never thought that was a so severe instruction. – Emmanuel Fernando Jul 06 '16 at 17:00
  • If you really want to use it I expect you could bypass their terrible attempt at a power supply and use an appropriate external power brick instead but really I expect the rest of the device is as shitty as the power supply. – Peter Green Jan 24 '17 at 19:55
8

From the picture you uploaded it's clear that there's no insulation whatsoever between mains voltage and the rest of the player. You shouldn't use this thing when connected to mains, especially with 3.5 jack earbuds (220V applied to your head is insta-death). Running it on battery may be OK, but every time you charge it you risk getting shocked, which may also be fatal (getting a shock while touching some grounded appliances in your house is all it takes to make the shock fatal).

There is no way to fix this thing with grounding, as any contact with ground will create a short circuit and burn the player down. The only practical way to go about it would be to return it to the seller and get your money back.

Dmitry Grigoryev
  • 25,576
  • 5
  • 45
  • 106
  • 1
    Thanks for your suggestion. Absolutely right. I shouldn't use it while it is connected to mains. Ok , so there is no way to fix it. Point noted. (i thought it would be easy) . I will definetly try to return it to the seller. But usually such cheap items are given without guarantee. So i dont think it will be easy. I'll take utmost care . Interestingly the antenna doesn't carry current when it is connected to the mains. – Emmanuel Fernando Jul 06 '16 at 16:49
