How can I build an Altium Designer rule that applies to only one component or reference designatorrefdes?

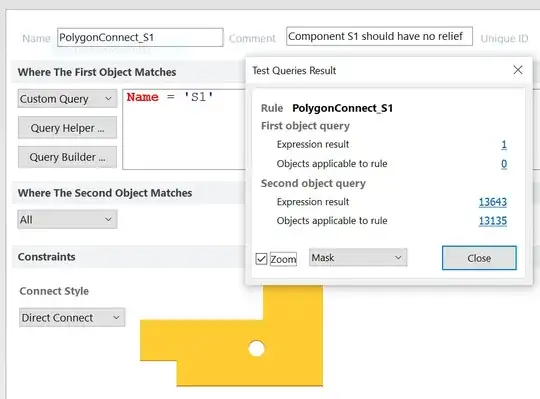

I tried selecting my component, S1, from the Query Helper, but that just puts the string 'S1' into the query. What else belongs there?

Altium rules named component

Bryce
  • 859
  • 1
  • 10
  • 26
  • 1
    Can you try with `InComponent('S1')`? At the moment I cannot check any of my previous rules, but I am sure that I have used the `InComponent('U1')` syntax to create some component specific rule. – Bence Kaulics Jun 17 '16 at 06:22

1 Answers1

2

It's InComponent(), i.e.:

InComponent ('J2') OR InComponent('J3') OR InComponent ('J4') OR InComponent ('J5')

Likewise, if you end up making a ComponentClass, it's InComponentClass():

InComponentClass('WaivedClearance')

Remember that if you do a positional re-annotation or something similar at the end that changes reference designators, your rules and component classes won't update automatically.
