Does a cut or a slot in a printed circuit board increase clearance, creepage or both?

Some say it will increase clearance, but I don't think clearance will change because, even with a cut in the PCB, distance over the air will be the same. Thus, a cut will only affect the creepage distance. Please correct me if I'm wrong.

Or does it have nothing to do with either clearance or creepage, and is only for isolation?

Ilmari Karonen
  • 832
  • 6
  • 13
Bharav
  • 722
  • 2
  • 7
  • 21
  • 1
    stackexchange doesn't work like your average bb forum, if you have a follow up question, you ask a new question, you don't edit your existing one to ask more. – PlasmaHH May 18 '16 at 08:55
  • Ok, I asked this on new question. – Bharav May 18 '16 at 09:22

2 Answers2

15

You are correct:

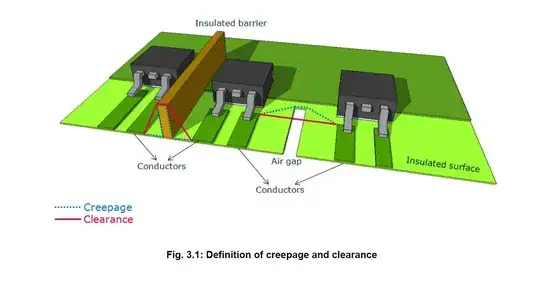

Here is a nice picture of the definitions of creepage and clearance:

Creepage and clearance

Note that adding a barrier will increase the clearance. Adding a barrier increases the physical length of insulated material between conductors, and that is what is considered when defining clearance. Normally a barrier is inserted into a slot (or slots) in the PCB.

Creepage and clearance are of great importance for high voltage isolation.

Peter Smith
  • 21,923
  • 1
  • 29
  • 64
4

Slots will only increase creepage. You need a barrier if you need to increase clerance.

Also, remember to make the slot >2 mm wide, otherwise it does not count by most standards.

winny
  • 13,064
  • 6
  • 46
  • 63
  • 2
    Usually > 1mm is sufficient, eg http://blog.optimumdesign.com/clearance-and-creepage-rules-for-pcb-assembly – Martin May 18 '16 at 07:58
  • Ah! Didn't know that. We always use 2 mm to be on the safe side for world-wide sales and approval of far-away saftey agencies which may or may not have slightly different ideas how to interpret the rules. – winny May 18 '16 at 08:55
