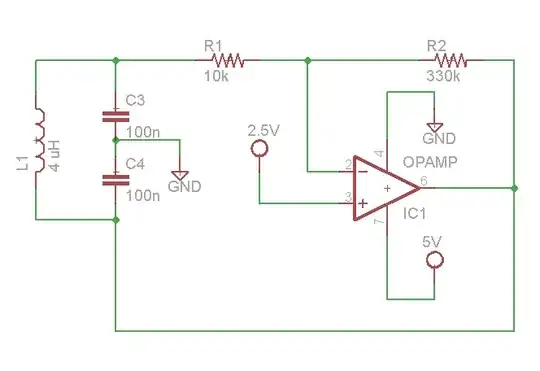

I use the following Colpitts oscillator schematic and I always need to put the scope probe on the inverting input of the opamp to make it start. Otherwise I get a DC voltage and no oscillations.

Do you have any idea about what I can do to to have a reliable startup at powerup ?

Thanks.

colpitts oscillator

akhmed
  • 205
  • 1
  • 4
  • 12
user89544
  • 31
  • 2

2 Answers2

3

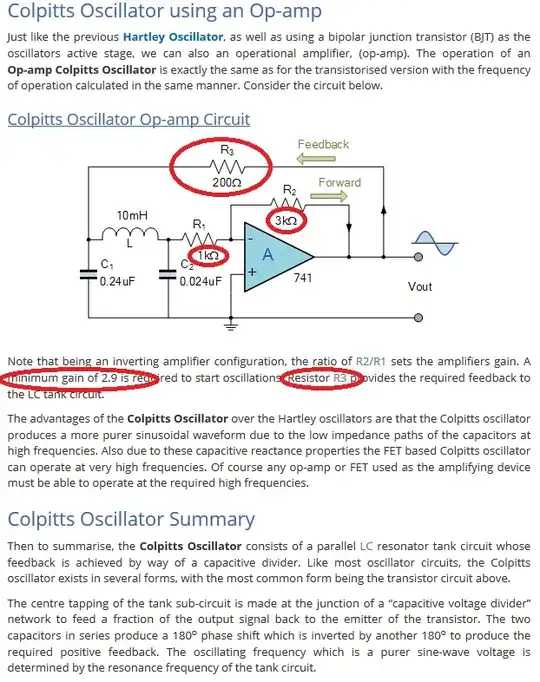

Try reading this tutorial: -

enter image description here

Note the use of R3 to prevent the op-amp output being directly loaded by one of the capacitors. Theoretically you have to have some phase shift between output and first capacitor and therefore you need a resistor.

Note also that the gain in your circuit is far too high.

I'm not ruling out anything else too.

Andy aka
  • 434,556
  • 28
  • 351
  • 777
  • Yes - I agree to Andy`s recommendation regarding R3. The BJT acts as a current source - in contrast to an opamp which is a voltage source. For this reason an opamp based Colpitt oscullator needs such a resistor R3. – LvW Oct 20 '15 at 13:59
0

Given that this is an old question, I will provide another answer just for reference of future generations. As a fellow electronics student, I found the following simple Falstad circuit to be helpful in understanding Colpitts Oscillator with an op-amp:

enter image description here
